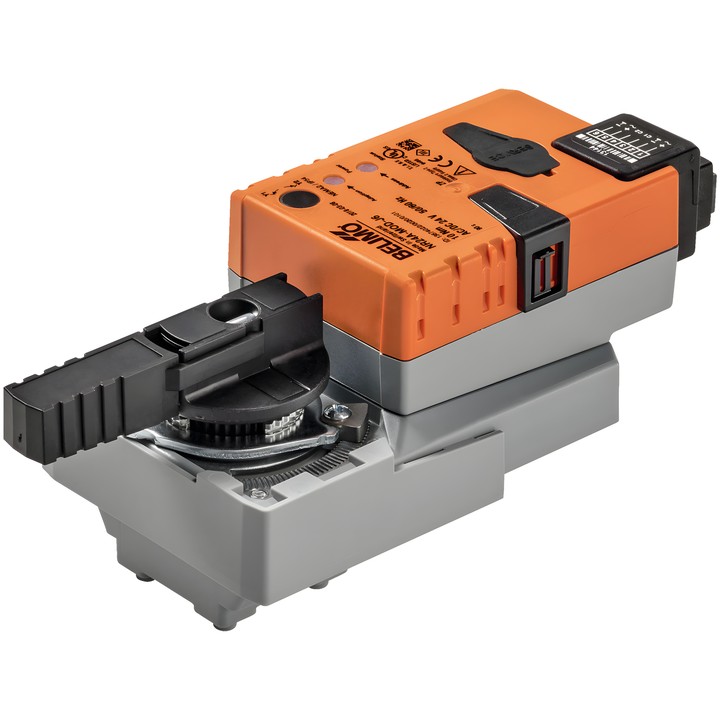

Belimo NR24A-MOD-J6 - rotary actuator for ball valves

Name: Belimo NR24A-MOD-J6 - rotary actuator for ball valves
Brand: Belimo
SKU: NR24A-MOD-J6
Price: 2437.86 PLN
Availability: OutOfStock

Belimo

zł2,437.86

VAT included

zł1,982.00 tax excluded

Communicating rotary actuator for ball valves with a torque of 10 Nm and an AC/DC 24 V supply voltage. Supports BACnet MS/TP and Modbus RTU; the RJ12 plug socket provides the power and control connection.

Running time is 90 s / 90° and can be set within a range of 45...170 s. Degree of protection: IP40.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NR24A-MOD-J6 is a communicating rotary actuator for ball valves. Its integrated interface receives digital control signals via BACnet MS/TP or Modbus RTU and transmits the current status.

Key features and parameters

Motor torque: 10 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Rated voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
Communication: BACnet MS/TP, Modbus RTU (factory setting).
Motor running time: 90 s / 90°; adjustable range: 45...170 s.
Power consumption during operation: 3.5 W; in the idle position: 1.4 W; for wire sizing: 6 VA.
Power and control connection: RJ12 plug socket.
Manual adjustment using a push-button with locking option; mechanical angle-of-rotation limit stops and mechanical position indicator.
Setting range adapts when power is first applied; can also be started manually.
Degree of protection IEC/EN: IP40; IP54 when using a protective cap or protective RJ12 socket gland. Protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

Device parameters can be modified using Belimo Assistant 2. The actuator mounts directly on the ball valve using a single central screw.
