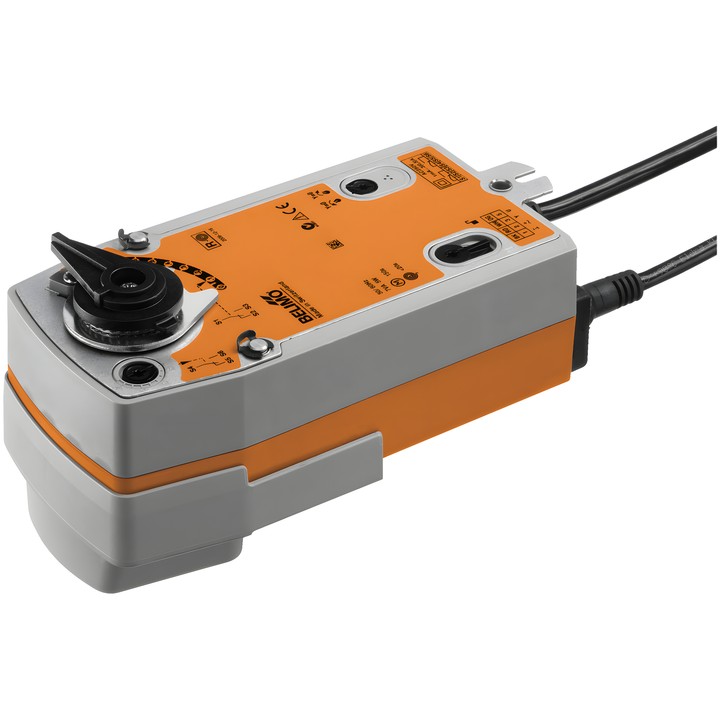

Belimo NRFD230A-3-S2 - rotary actuator for ball valves

Name: Belimo NRFD230A-3-S2 - rotary actuator for ball valves
Brand: Belimo
SKU: NRFD230A-3-S2
Price: 1521.24 PLN
Availability: BackOrder

Belimo

zł1,521.24

VAT included

zł1,236.78 tax excluded

Rotary actuator for ball valves with spring-return fail-safe function. Torque 5 Nm, AC 100...240 V supply, 3-point control and motor running time 35 s / 90°.

When the power supply fails, the spring moves the valve to the closed position (NC). The actuator has two integrated auxiliary switches 2x SPDT.

Delivery in approx. 14 days

Belimo NRFD230A-3-S2

Rotary actuator for ball valves. During operation, it moves the valve to the operating position and tensions the return spring; when the power supply is interrupted, the spring moves the valve to the closed position (NC).

Key features and specifications

Motor and fail-safe function torque: 5 Nm.
Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: 3-point; motor running time: 35 s / 90°.
Fail-safe function running time: <20 s @ -20...50°C, <60 s @ -30°C.
Two integrated auxiliary switches: 2x SPDT, 1x 10% / 1x 11...100%.
Power consumption: 5 W while running, 3 W at rest; sizing power: 16 VA.
Power and control connection: cable 1 m, 4x 0.75 mm²; auxiliary switch connection: cable 1 m, 6x 0.75 mm².
Mechanical position indication and adjustable rotation angle with mechanical stops.
Degree of protection: IP54; NEMA 2; UL Enclosure Type 2 housing.

Mounted directly on the ball valve using one screw. The mounting position relative to the valve can be selected in 90° increments.
