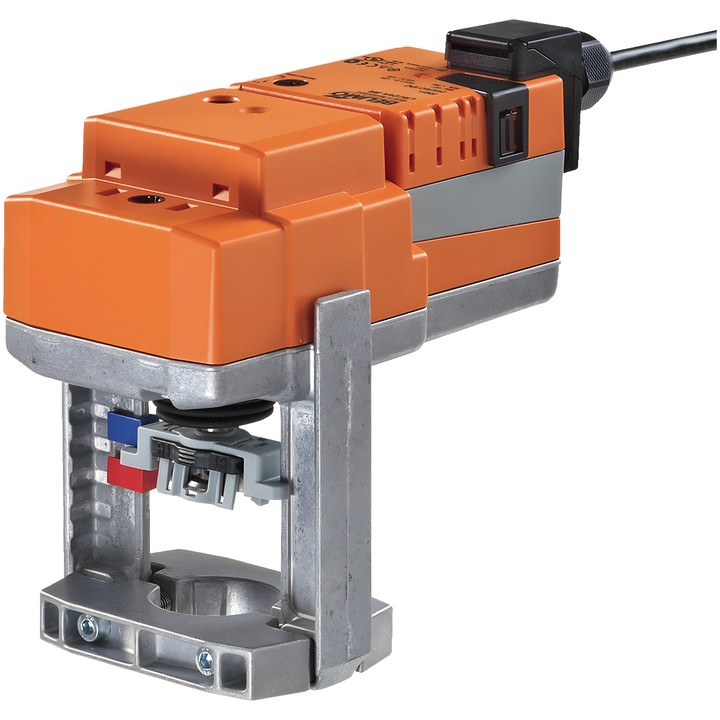

Belimo NVC230A-TPC - linear actuator for globe valves

Belimo NVC230A-TPC

Linear actuator for 2-way and 3-way globe valves. Supports Close/Open or 3-point control.

Key features

• Thrust: 1000 N; stroke: 20 mm; running time: 35 s / 20 mm.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
• Power consumption during operation: 3.5 W; at rest: 0.5 W; sizing power: 6.5 VA.
• Power and control connection: terminals with 1 m cable, 3x 0.75 mm² (4 mm² terminal).
• Manual adjustment by push-button with locking option; mechanical position indicator for 5...20 mm stroke.
• IEC/EN degree of protection: IP54; IEC/EN protection class: II, reinforced insulation.
• Direct mounting on the valve using clamping jaws; actuator can be rotated 360° on the valve neck.
