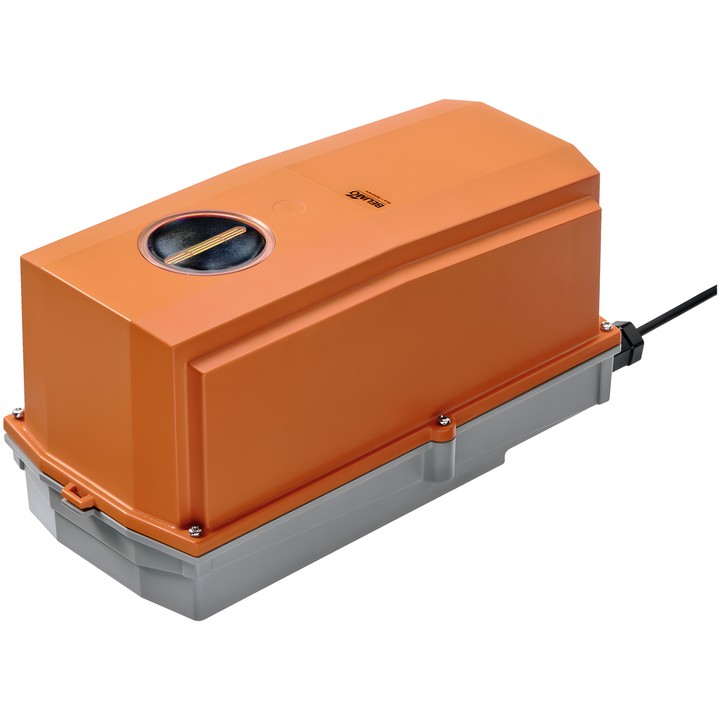

Belimo GRC24G-5 - rotary actuator for valves

Name: Belimo GRC24G-5 - rotary actuator for valves
Brand: Belimo
SKU: GRC24G-5
Price: 2374.28 PLN
Availability: BackOrder

Belimo

zł2,374.28

VAT included

zł1,930.31 tax excluded

Rotary actuator for rotary valves and dampers. Torque 40 Nm, AC/DC 24 V power supply, Close/Open control and running time 35 s / 90°.

IP66/67 protection rating, F05 connection flange and manual adjustment by push-button.

Delivery in approx. 14 days

Belimo GRC24G-5 rotary actuator

Actuator designed for rotary valves and dampers. Suitable for outdoor applications in stationary heating, ventilation and air conditioning installations.

Key features and specifications

Torque: 40 Nm; control: Close/Open.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Running time: 35 s / 90°.
Power consumption during operation: 8 W; at rest: 2.5 W; sizing power: 11 VA.
Power and control connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free).
IEC/EN protection rating: IP66/67; NEMA/UL protection rating: NEMA 4X.
IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Connection flange: F05; installation relative to the valve is possible in 90° increments.
Position indicator and adjustable rotation angle with mechanical stops; standard setting 0...90°.
Manual adjustment by push-button with locking option; requires removal of the housing cover.
Ambient temperature: -30...50°C.
