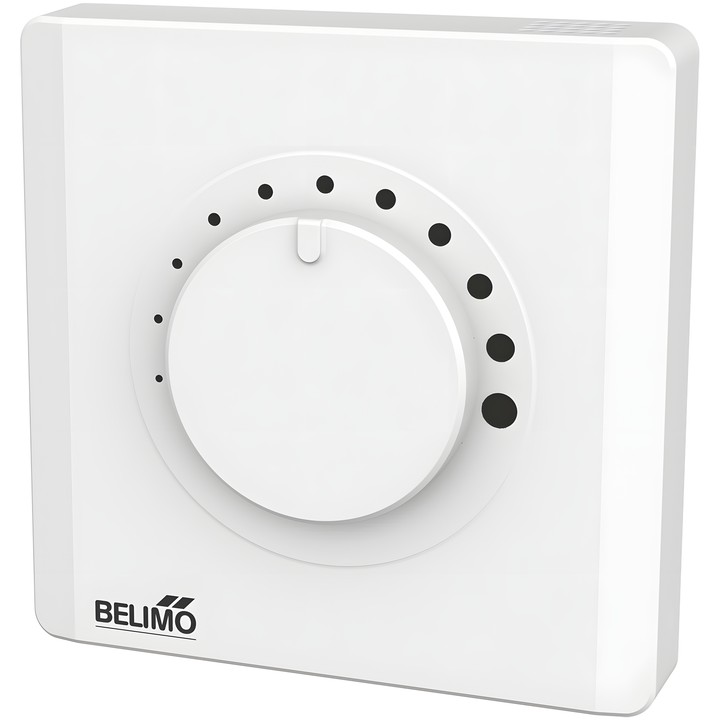

Belimo P-01RT-1B-0 - passive room temperature setpoint adjuster
Price:
zł110.40
VAT included
zł89.76 tax excluded
The Belimo P-01RT-1B-0 passive room unit measures room temperature and allows the setpoint to be adjusted. Sensor output signal: Pt1000; potentiometer: 0.7...1.3 kΩ.
The white RAL 9003 polycarbonate housing is designed for surface mounting. Protection rating: IP30.
Belimo P-01RT-1B-0 – passive room setpoint adjuster
The device is designed to measure room air temperature and adjust the temperature setpoint. It can be connected to existing controllers from other manufacturers.
Key features and specifications
- Passive temperature sensor output signal: Pt1000.
- Potentiometer: 0.7...1.3 kΩ; typical potentiometer accuracy: ±15%.
- Temperature measuring range: 0...50°C [32...122°F].
- Pt.. sensor accuracy: Class B, ±0.3°C @ 0°C [±0.5°F @ 32°F].
- Pt1000 measuring current: <0.3 mA @ 0°C [32°F].
- Typical time constant τ (63%) in a room: 360 s.
- Electrical connection: spring terminal 0.5...1.5 mm².
- IEC/EN protection rating: IP30; IEC/EN protection class: III, Protective Extra-Low Voltage (PELV).
- Housing: PC, white, RAL 9003; surface mounting; dimensions 86x86x16.5 mm (HxWxD).
-
Brand
-
ReferenceP-01RT-1B-0
-
EAN137630498121456
-
Electrical connectionTerminals
-
Measured valuesTemperature
-
Output signalPt1000
-
Passive temperature sensor outputPt1000
