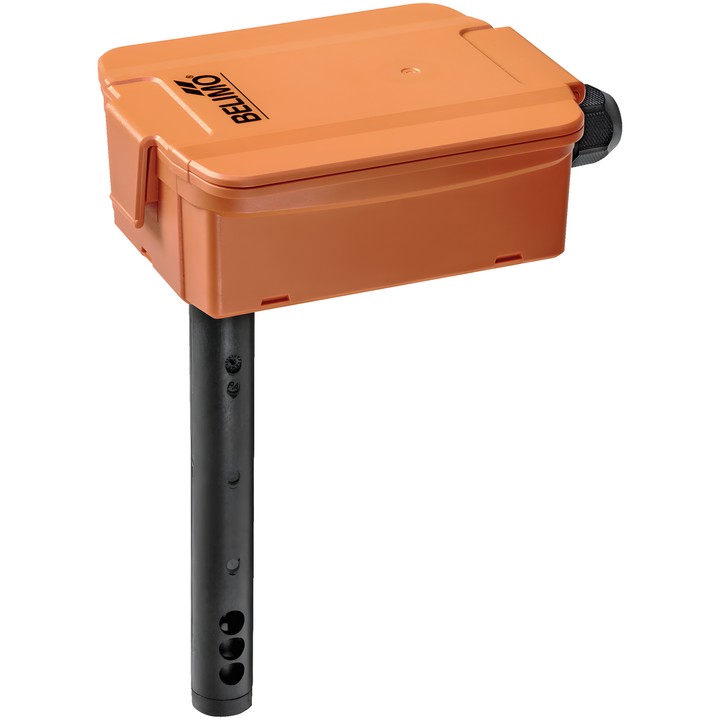

Belimo 22DC-11 - Duct CO₂ sensor

Belimo 22DC-11 - Duct CO₂ sensor

Belimo
zł1,021.56
VAT included
zł830.54 tax excluded

Active duct sensor for measuring CO₂ in air. Measuring range 0...2000 ppm; output signal 0...5 V or 0...10 V, adjustable via jumper.

Power supply AC/DC 24 V, probe length 150 mm, probe diameter 19.5 mm. Enclosure protection rating IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 22DC-11 – duct CO₂ sensor

Active sensor for measuring CO₂ concentration in air in a duct. Uses dual-channel non-dispersive infrared (NDIR) technology.

Key specifications

  • CO₂ measuring range: 0...2000 ppm.
  • Accuracy: ±(50 ppm + 3% of measured value).
  • Output signal: 1 x 0...5 V, 0...10 V; 0...5/10 V selection via jumper; min. resistance 10 kΩ.
  • Nominal voltage: AC/DC 24 V; voltage range: AC 19...29 V / DC 15...35 V.
  • Probe length: 150 mm; probe diameter: 19.5 mm.
  • Protection rating: IP65 / NEMA 4X.
  • Electrical connection: detachable terminal strip with spring terminals, max. 2.5 mm².
  • Airflow conditions: min. 0.3 m/s, max. 12 m/s.
  • Ambient and measured-air temperature: 0...50°C.

Includes an A-22D-A35 mounting flange for the duct sensor with a diameter of 19.5 mm.

  • Brand
    Belimo
  • Reference
    22DC-11
  • EAN13
    7630498101021

  • Electrical connection
    Terminals
  • Measured values
    CO₂
  • Output signal
    0...5 V 0...10 V
  • Probe length
    150 mm
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • CO₂ measuring range
    0...2000 ppm

Techniczna karta katalogowa

Download (1.68MB)

Instrukcja montażu

Download (921.65KB)

Techniczna karta katalogowa – 22DC-11

Download (1.68MB)

EU Declaration of Conformity – 22DC-11

Download (39.79KB)

Environmental Declaration – 22DC../22DTC../22DTM../22DCV../22DCM../22DCK..

Download (70.56KB)
