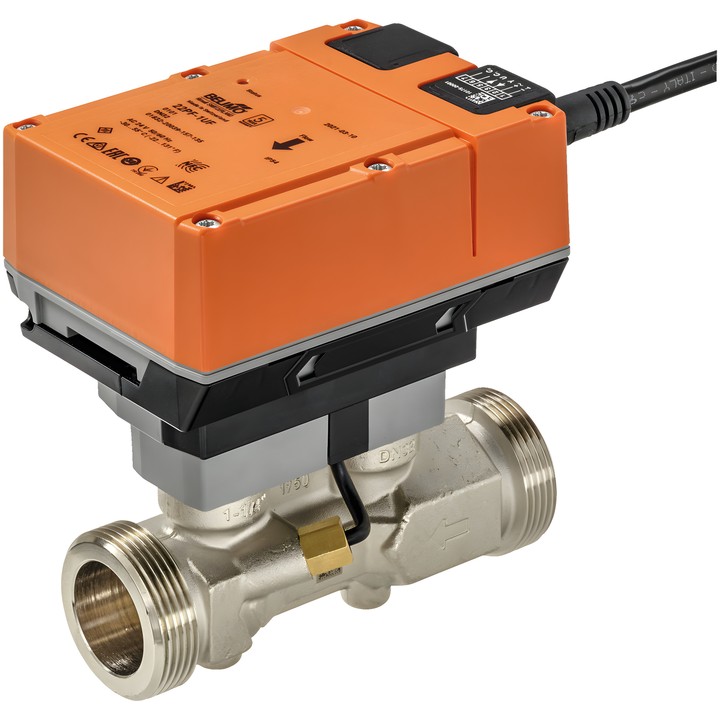

Belimo 22PF-1UH - ultrasonic flow sensor

Belimo 22PF-1UH – DN 50 flow sensor

The sensor uses ultrasonic flow measurement in closed cold and hot water systems. It measures the flow and temperature of the medium. During operation, it measures the glycol content and takes it into account in the flow measurement. Device parameters can be configured using Belimo Assistant 2.

Key features and specifications

• Size: DN 50; nominal pressure: PN 25.
• Full flow measurement range: FS 5.0 l/s (18 m³/h).
• Medium: water or water with up to 60% by volume glycol.
• Ultrasonic flow measurement; measured values: flow and temperature.
• Power supply: AC/DC 24 V; electrical connection: cable 6x 0.75 mm².
• Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V or user-defined. Factory setting: DC 0...10 V.
• Communication: BACnet MS/TP, Modbus RTU, MP-Bus.
• Connection: G 2 1/2" external thread according to ISO 228-1.
• Degree of protection: IP54; medium temperature range: -20...120°C.
• NFC interface for configuration; insulation shell included, except in the Asia-Pacific region.

Permitted installation: from vertical to horizontal; suspended installation is not permitted. Observe the flow direction indicated by the arrow on the housing.
