Belimo P-22RTH-1U00D-2 - room humidity and temperature controller

Name: Belimo P-22RTH-1U00D-2 - room humidity and temperature controller
Brand: Belimo
SKU: P-22RTH-1U00D-2
Price: 1013.96 PLN
Availability: BackOrder

Belimo

zł1,013.96

VAT included

zł824.36 tax excluded

The Belimo P-22RTH-1U00D-2 room controller measures temperature and relative humidity. It features a touchscreen ePaper display and supports Modbus RTU, BACnet MS/TP and MP-Bus communication.

AC/DC 24 V power supply, 1x DI digital input and white surface-mount housing, RAL 9003.

Delivery in approx. 14 days

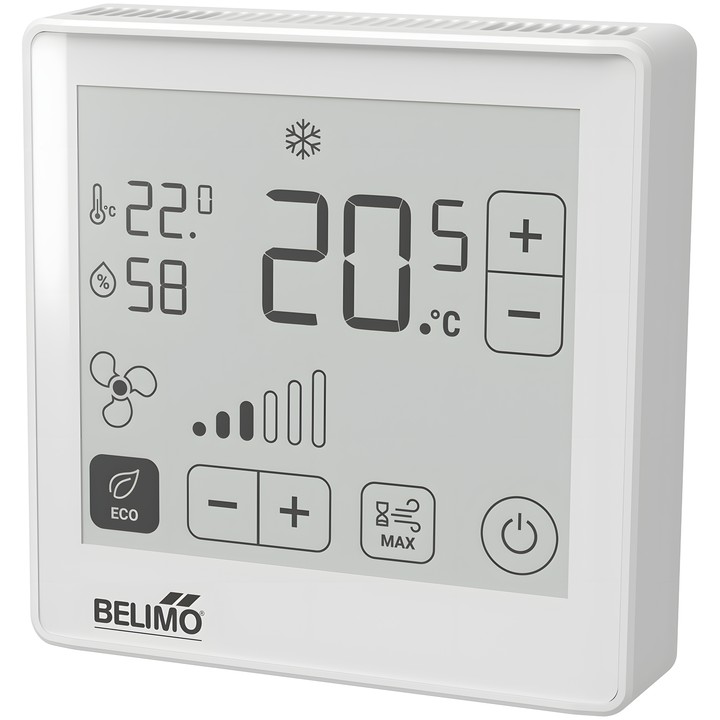

Belimo P-22RTH-1U00D-2 room controller

A device for measuring room temperature and relative humidity, and for setting temperature and ventilation. The type overview for this model also lists dew point measurement.

Key features

Measured values: temperature, relative humidity and dew point.
Temperature measuring range: 0...50°C [32...122°F]; humidity measuring range: 0...100% RH.
Communication: Modbus RTU, BACnet MS/TP, MP-Bus; configuration via NFC with the Belimo Assistant 2 app.
Touchscreen ePaper display; 1x DI digital input for a potential-free contact.
Rated voltage: AC/DC 24 V; IEC/EN IP30 protection rating.
Electrical connection: spring terminal 0.25...1.5 mm².
Polycarbonate (PC) housing, white, RAL 9003; surface mounting.
Housing dimensions: 86x86x18 mm (HxWxD).
