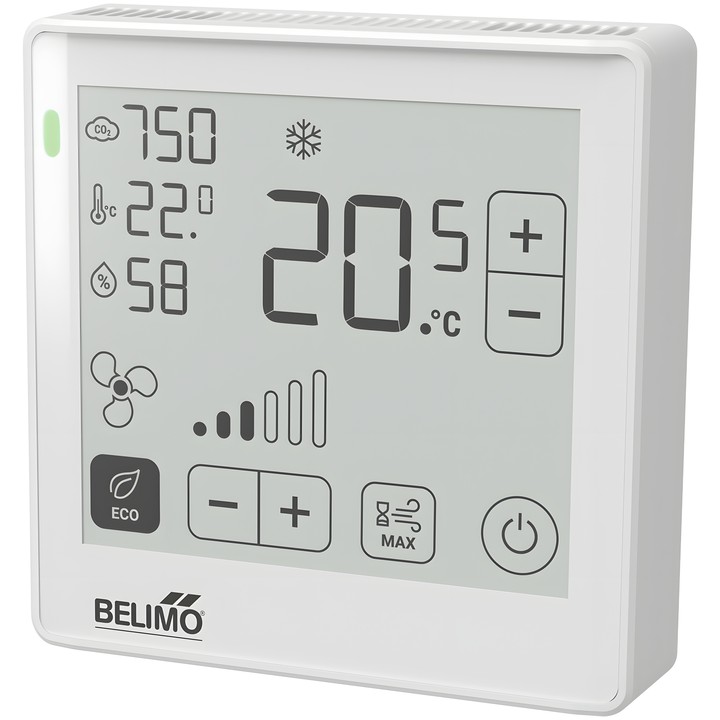

Belimo P-22RTM-1800D-1 - CO₂, humidity and temperature room sensor and setpoint unit

Name: Belimo P-22RTM-1800D-1 - CO₂, humidity and temperature room sensor and setpoint unit
Brand: Belimo
SKU: P-22RTM-1800D-1
Price: 1286.28 PLN
Availability: BackOrder

Belimo

zł1,286.28

VAT included

zł1,045.76 tax excluded

Belimo P-22RTM-1800D-1 is a room sensor and setpoint unit for measuring CO₂, relative humidity and temperature. It features an ePaper touchscreen, an LED and MP-Bus communication.

The device is powered by AC/DC 24 V. It has 3 analogue outputs configurable as 0...10 V, 0...5 V, 2...10 V or 4...20 mA and supports configuration using Belimo Assistant 2.

Delivery in approx. 14 days

Belimo P-22RTM-1800D-1

Room sensor and setpoint unit for measuring temperature, relative humidity and CO₂, and for controlling room temperature or ventilation. The ePaper touchscreen enables setpoint operation; the LED indicates the CO₂ level.

Key features and technical data

Measured values: CO₂, relative humidity, dew point and temperature.
CO₂ measuring range: factory setting 0...2000 ppm; dual-channel NDIR measurement technology.
Humidity measuring range: factory setting 0...100% RH; temperature: 0...50°C [32...122°F].
Communication: MP-Bus; 3 analogue outputs with a choice of 0...10 V (factory setting), 0...5 V, 2...10 V or 4...20 mA.
ePaper touchscreen and LED; display size 69x62 mm. The ePaper display is not backlit.
Configuration using Belimo Assistant 2; analogue outputs AO1, AO2 and AO3 can be configured via NFC.
Rated voltage: AC/DC 24 V. Electrical connection: spring terminal 0.2...2.5 mm².
IEC/EN degree of protection: IP30. Enclosure: PC, white, RAL 9003; surface mounting.
Device dimensions: 86x86x24 mm (HxWxD).
