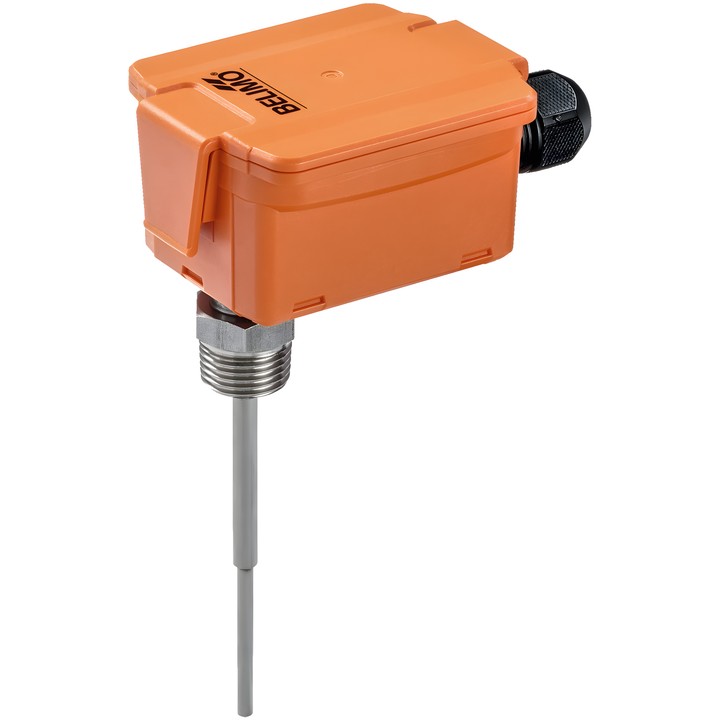

Belimo 01PT-1BH - immersion temperature sensor Pt1000

Belimo 01PT-1BH - immersion temperature sensor Pt1000

Belimo
zł235.85
VAT included
zł191.75 tax excluded

Passive immersion temperature sensor for measuring the temperature of liquid media. Model 01PT-1BH has a Pt1000 output, a stainless steel probe 50 mm long and 6/4 mm in diameter, and an R 1/2" connection.

Delivery in approx. 14 days
Share

Belimo 01PT-1BH – immersion temperature sensor

Passive sensor for measuring the temperature of liquid media, with a stainless steel probe and fast-response characteristics.

Key features

  • Output signal: Pt1000.
  • Probe length: 50 mm; probe diameter: 6/4 mm.
  • Connection: R 1/2"; nominal pressure: PN10.
  • Measuring range for Pt..: -50...160°C [-60...320°F].
  • Accuracy for Pt..: Class B, ±0.3°C @ 0°C [±0.5°F @ 32°F].
  • Time constant τ (63%) in a water pipeline: typically 2.5 s.
  • Electrical connection: pluggable spring terminal block, max. 2.5 mm².
  • Protection rating: IP65 and NEMA 4X.

  • Brand
    Belimo
  • Reference
    01PT-1BH
  • EAN13
    7630498117626

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    Pt1000
  • Passive temperature sensor output
    Pt1000
  • Probe length
    50 mm

Techniczna karta katalogowa

Download (1.29MB)

Instrukcja montażu

Download (1.52MB)

Techniczna karta katalogowa – 01PT-1..

Download (1.29MB)

EU Declaration of Conformity – 01PT-1BH

Download (37.84KB)

Environmental Declaration – 01PT..

Download (70.16KB)
