Belimo P200A - feedback potentiometer

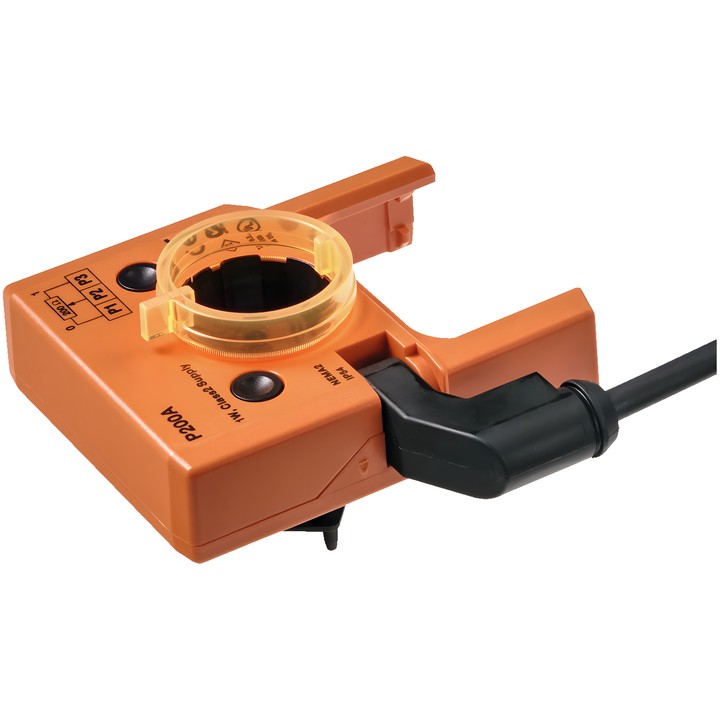

Belimo P200A feedback potentiometer

The P200A transfers the actuator position to a feedback potentiometer. It is designed for damper actuators and rotary actuators. It is mounted directly on the actuator shaft clamp of a damper actuator or on the position indicator of a rotary actuator.

Key features and specifications

• Nominal resistance: 200 Ω; tolerance: ±5%.
• Maximum load: 1 W; linearity: ±2%.
• Resolution: min. 1%; residual resistance: max. 5% on both sides.
• Potentiometer connection: 1 m cable, 3 x 0.75 mm², FRNC (halogen-free).
• Degree of protection IEC/EN: IP54.
• Ambient temperature: -30...50°C [-22...122°F].

The potentiometer can be used for modulating damper control with controllers with fixed feedback, as well as for indicating damper position or as a positioner for actuators operating in parallel.
