Belimo LM24AP5 - damper actuator

Belimo LM24AP5 - damper actuator

Belimo
zł1,189.41
VAT included
zł967.00 tax excluded

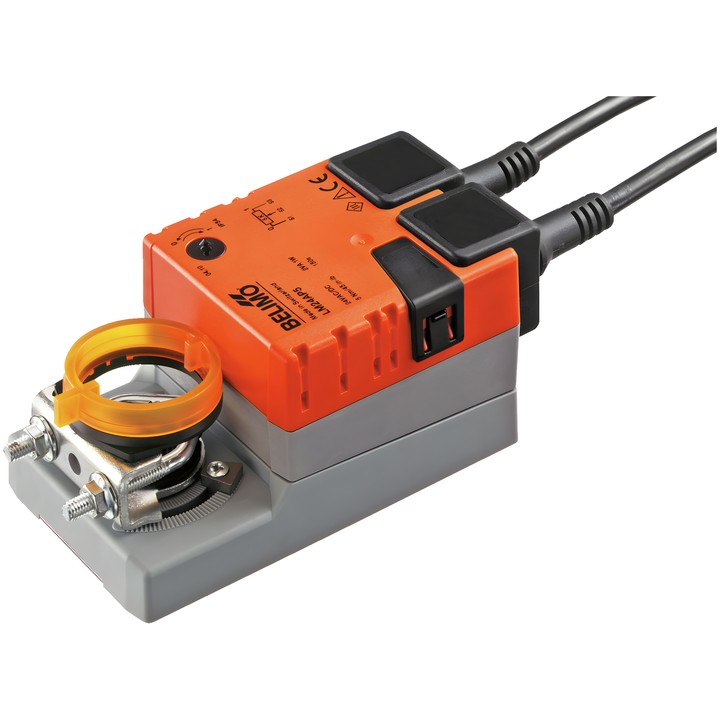

Belimo LM24AP5 damper actuator with a torque of 5 Nm, powered by AC/DC 24 V. Supports Open/Close and 3-point control; motor running time is 150 s / 90°.

Equipped with an integrated 5 kΩ feedback potentiometer, universal clamp 6...20 mm and a push button for manual override with locking option.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LM24AP5 damper actuator

The LM24AP5 is designed to position dampers in technical building systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 1 m².

Key features and specifications

  • Motor torque: 5 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
  • Control: Open/Close, 3-point; motor running time: 150 s / 90°.
  • Integrated feedback potentiometer: 5 kΩ; position feedback signal 0...100%.
  • Rotation angle: max. 95°, with adjustment possible on both sides using adjustable mechanical stops.
  • Direction of movement selected by switch: 0 (counterclockwise) / 1 (clockwise).
  • Manual override by push button with locking option; mechanical position indicator.
  • Mechanical connection: universal clamp 6...20 mm.
  • Power consumption during movement: 1 W; in standby position: 0.2 W; sizing power for cables: 1.5 VA.
  • Separate 1 m cables, 3x 0.75 mm², for power and control connection and potentiometer connection.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LM24AP5
  • EAN13
    7630498112294

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    1.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm
  • Potentiometer
    5 kΩ
  • Potentiometer connection
    Cable, 3x 0.75 mm²
