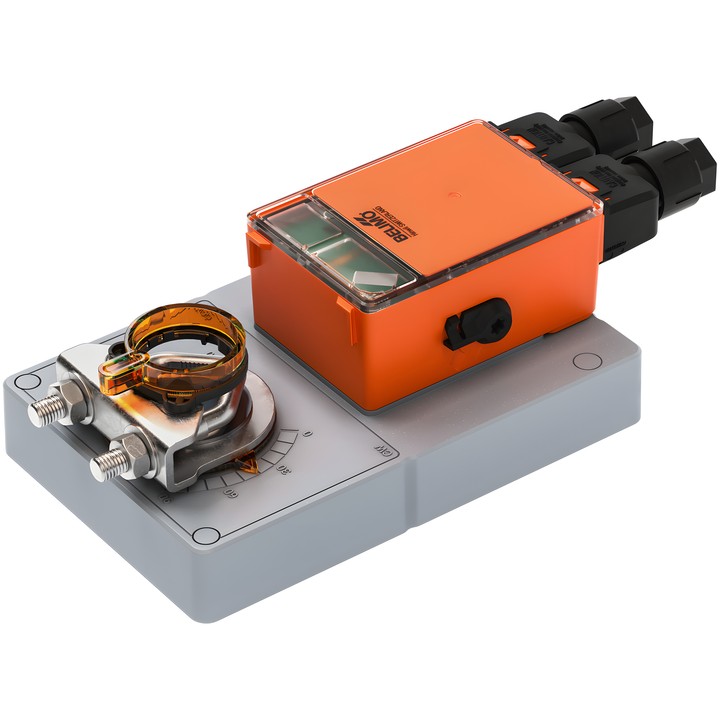

Belimo GM24S.46 - damper actuator

Belimo GM24S.46 - damper actuator

Belimo
zł1,506.05
VAT included
zł1,224.43 tax excluded

Belimo GM24S.46 damper actuator with a torque of 40 Nm, AC/DC 24 V supply and Close/Open control. Motor running time is 35 s / 90° and is adjustable within a range of 35...150 s.

Equipped with 2x SPST, a reversible universal mounting clamp for 12...26.7 mm and spring terminals with a detachable electrical connection. IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo GM24S.46 – damper actuator

Actuator designed for controlling dampers in building technical systems. Enables manual adjustment using a side lever with lock and parameter configuration via Belimo Assistant 2, including through NFC.

Key features and specifications

  • Motor torque: 40 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control: Close/Open.
  • Motor running time: 35 s / 90°; adjustable range: 35...150 s.
  • Rotation angle: max. 95°; electronic limitation on both sides using Belimo Assistant 2.
  • Two integrated auxiliary switches: 2x SPST (Single Pole, Single Throw).
  • Mechanical connection: reversible universal mounting clamp for 12...26.7 mm.
  • Electrical connection: detachable spring terminals.
  • Manual adjustment: side lever with lock.
  • Status indication: green LED; NFC interface for configuration using Belimo Assistant 2.
  • Power consumption during operation: 4 W; at rest: 0.3 W; for wire sizing: 8 VA.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Protective Extra-Low Voltage (PELV).
  • Ambient temperature: -30...55°C [-22...131°F].

  • Brand
    Belimo
  • Reference
    GM24S.46
  • EAN13
    7630498145711

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Terminals 2.5 mm² [14 AWG], (cable ø4...7,5 mm [ø0.16...0.29"], 4-core)
  • Power consumption (running)
    4 W
  • Power consumption (holding)
    0.3 W
  • Rated power
    8 VA
  • Power supply control connection
    Terminals 2.5 mm² [14 AWG] (cable ø4...7,5 mm [ø0.16...0.29"], 3-core)
  • Control type
    Close/Open
  • Protection rating
    IP54
  • Manual override
    With side lever, lockable
  • Running time (motor)
    35 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...55°C [-22...131°F]
  • Auxiliary contacts
    2x SPST
  • Torque
    40 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 12...26.7 mm

Techniczna karta katalogowa

Download (3.22MB)

Instrukcja montażu

Download (1.55MB)

Techniczna karta katalogowa – GM24S.46

Download (3.24MB)

EU Declaration of Conformity – GM24S.46

Download (157.16KB)
