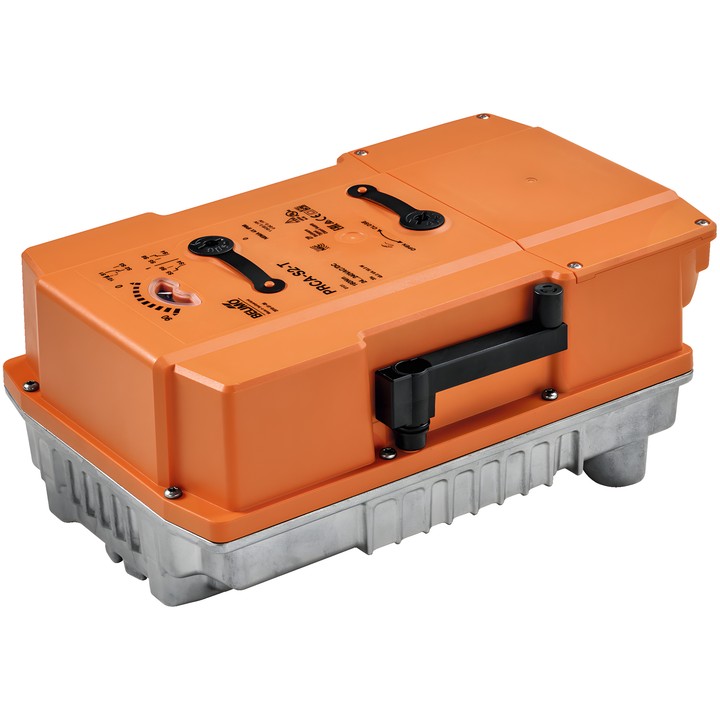

Belimo PRCA-S2-T-250 - rotary actuator for dampers

Name: Belimo PRCA-S2-T-250 - rotary actuator for dampers
Brand: Belimo
SKU: PRCA-S2-T-250
Price: 5042.99 PLN
Availability: BackOrder

Belimo

zł5,042.99

VAT included

zł4,099.99 tax excluded

Belimo PRCA-S2-T-250 rotary actuator for dampers, with a torque of 160 Nm (configured for D6250W/WL). Supply voltage AC 24...240 V / DC 24...125 V; Close/Open or 3-point control.

Equipped with 2x SPDT, a manual crank and mechanical position indication. Motor running time is 35 s / 90°, and the IEC/EN protection rating is IP66/67.

Delivery in approx. 14 days

Belimo PRCA-S2-T-250 rotary actuator

Electronic actuator for dampers, with a torque of 160 Nm (configured for D6250W/WL). Intended for use in stationary heating, ventilation and air-conditioning installations.

Key features and specifications

Nominal supply: AC 24...240 V / DC 24...125 V; frequency 50/60 Hz.
Control: Close/Open, 3-point.
Motor running time: 35 s / 90°; adjustable running time: 30...120 s.
Auxiliary switches: 2x SPDT — one fixed at 10°, the other adjustable within 0...90° (default setting 85°).
Power consumption: 20 W during operation and 6 W at rest; sizing power for cable selection: at 24 V 20 VA / at 240 V 52 VA.
Power, control and auxiliary switch connection: 2.5 mm² terminals.
Manual operation with a crank; integrated mechanical position indicator.
An internal heater limits condensation; its operation is controlled by integrated temperature and humidity sensors.
Parameter configuration via Belimo Assistant 2 using NFC or a wired connection.
IEC/EN protection rating: IP66/67; NEMA 4X; UL Enclosure Type 4X housing.

The two integrated auxiliary switches must be supplied either with mains voltage or with safety extra-low voltage — mixing these voltage types is not permitted.
