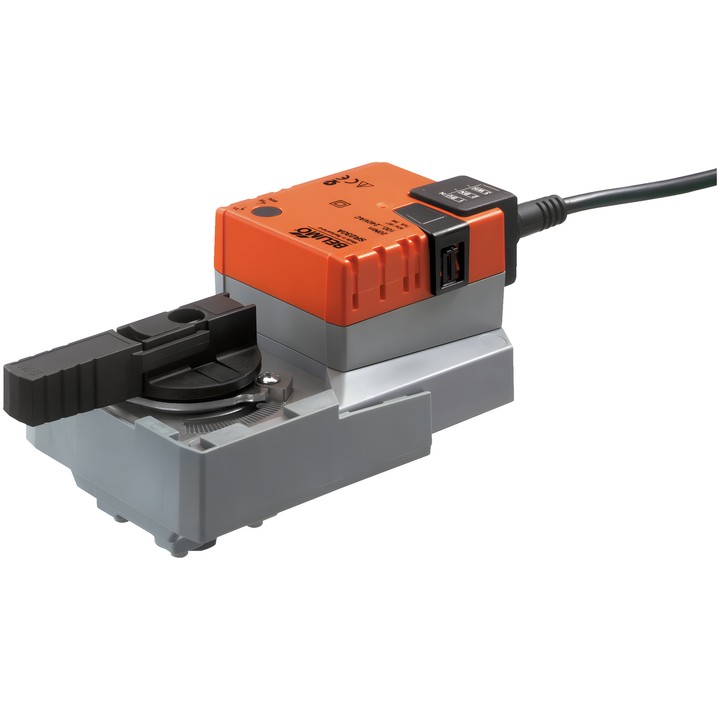

Belimo SR230A - rotary actuator for ball valves

Name: Belimo SR230A - rotary actuator for ball valves
Brand: Belimo
SKU: SR230A
Price: 744.16 PLN
Availability: BackOrder

Belimo

zł744.16

VAT included

zł605.01 tax excluded

Belimo SR230A rotary actuator for ball valves, with a torque of 20 Nm. AC 100...240 V supply, Close/Open or 3-point control, and an operating time of 90 s / 90°.

Features push-button manual override, mechanical rotation angle adjustment, and a position indicator. IEC/EN protection rating IP54.

Delivery in approx. 14 days

Belimo SR230A rotary actuator

The SR230A is a rotary actuator for ball valves. It can be mounted directly on the valve using a single central screw; the mounting position relative to the valve can be selected in 90° increments.

Key features and technical data

Motor torque: 20 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Close/Open, 3-point.
Motor operating time: 90 s / 90°.
Power consumption during operation: 3 W; in standby: 0.6 W; sizing power: 7 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Push-button manual override with option to lock.
Mechanical position indicator and rotation angle adjustment using mechanical stops.
Overload protection; automatic stop when the end position is reached.
IEC/EN protection rating: IP54; IEC/EN protection class: II, double insulation.
