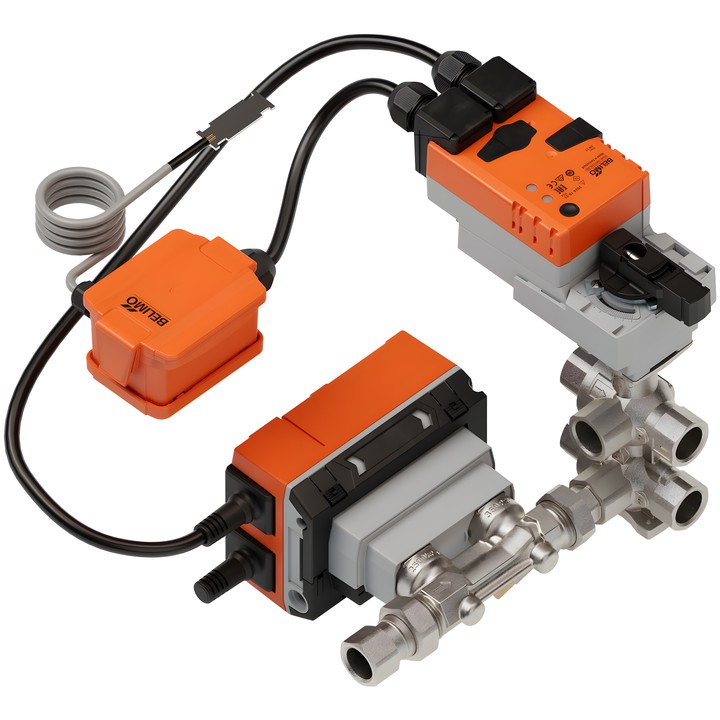

Belimo EP015R6+BAC-HHM - 6-way EPIV control valve

Name: Belimo EP015R6+BAC-HHM - 6-way EPIV control valve
Brand: Belimo
SKU: EP015R6+BAC-HHM
Price: 3896.70 PLN
Availability: BackOrder

Belimo

zł3,896.70

VAT included

zł3,168.05 tax excluded

6-way EPIV control valve with pressure-independent flow and humidity sensor. DN 15, PN 16, Rp 1/2" female thread, V'nom 1500 l/h. Designed for closed-loop heating and cooling water systems.

AC/DC 24 V power supply; 2...10 V analogue control or BACnet MS/TP, Modbus RTU and MP-Bus communication. V'max setting: 4.2...100% of V'nom.

Delivery in approx. 14 days

Belimo EP015R6+BAC-HHM – 6-way EPIV valve

With sensor-based flow measurement and control, this control valve handles two sequences, cooling and heating, using a single 90° rotary actuator. It is designed for closed-loop water systems.

Key features and specifications

DN 15, PN 16; Rp 1/2" female threaded connection.
V'nom 1500 l/h; V'max adjustable 4.2...100% of V'nom.
Medium: water or water with up to max. 60% vol. glycol; medium temperature 6...80°C [43...176°F].
AC/DC 24 V power supply; power consumption during operation 4.4 W, in standby position 4.1 W.
Modulating, communicative or hybrid control; operating range Y 2...10 V. BACnet MS/TP, Modbus RTU and MP-Bus communication.
Integrated condensation monitoring with humidity sensor; the valve can be closed when condensation is detected.
Ultrasonic flow measurement; glycol compensation.
∆pmax 110 kPa; closing pressure ∆ps 350 kPa; linear flow characteristic.
IP54 protection rating; manual adjustment by push-button with locking option.
NFC interface for configuration and diagnostics using Belimo Assistant 2.

Power and control connection: 1 m cable, 6x 0.75 mm². Sensor cable length: 2 m + 2 m.
