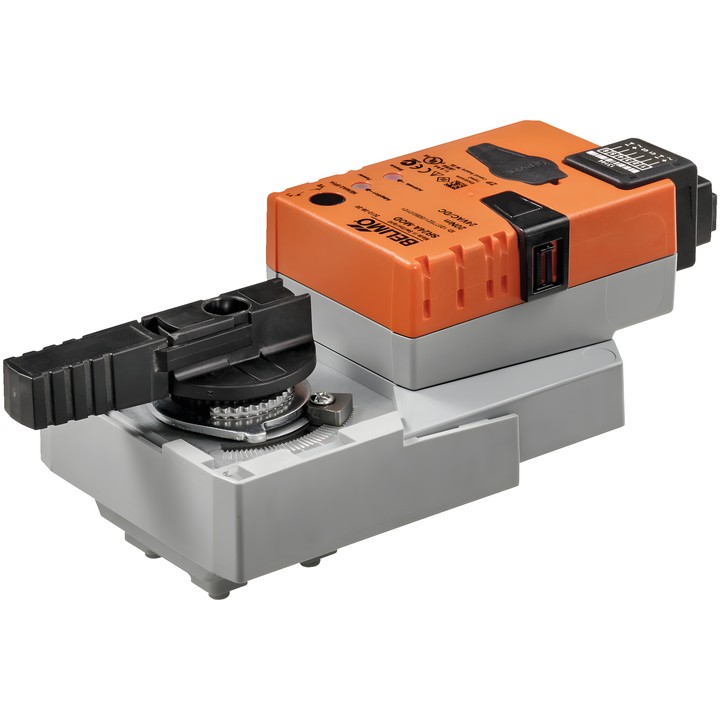

Belimo SR24A-MOD-J6 - rotary actuator for ball valves

Name: Belimo SR24A-MOD-J6 - rotary actuator for ball valves
Brand: Belimo
SKU: SR24A-MOD-J6
Price: 2605.14 PLN
Availability: OutOfStock

Belimo

zł2,605.14

VAT included

zł2,118.00 tax excluded

Communicating rotary actuator for ball valves with a torque of 20 Nm and an AC/DC 24 V supply voltage. Supports BACnet MS/TP and Modbus RTU.

Motor running time is 90 s / 90° and can be adjusted within the range of 90...350 s. The actuator has an RJ12 socket and manual adjustment by push-button.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo SR24A-MOD-J6

Communicating rotary actuator for ball valves. The integrated interface receives a digital control signal via BACnet MS/TP or Modbus RTU and reports the actuator's current status.

Key features and parameters

Motor torque: 20 Nm.
Nominal voltage: AC/DC 24 V; nominal voltage frequency: 50/60 Hz.
Nominal voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
Communication: BACnet MS/TP and Modbus RTU; Modbus RTU is the factory setting.
Motor running time: 90 s / 90°; adjustable running time: 90...350 s.
Power consumption during operation: 3.5 W; in the rest position: 1.25 W; sizing power: 6 VA.
Power and control connection: RJ12 socket.
Manual adjustment by push-button, with locking option; mechanical rotation angle limiters and a mechanical, plug-in position indicator.
Setting range adaptation: manual, automatic on initial power-up.
IEC/EN degree of protection: IP40; IP54 when using a protective cover or protective gland for the RJ12 socket.
IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
