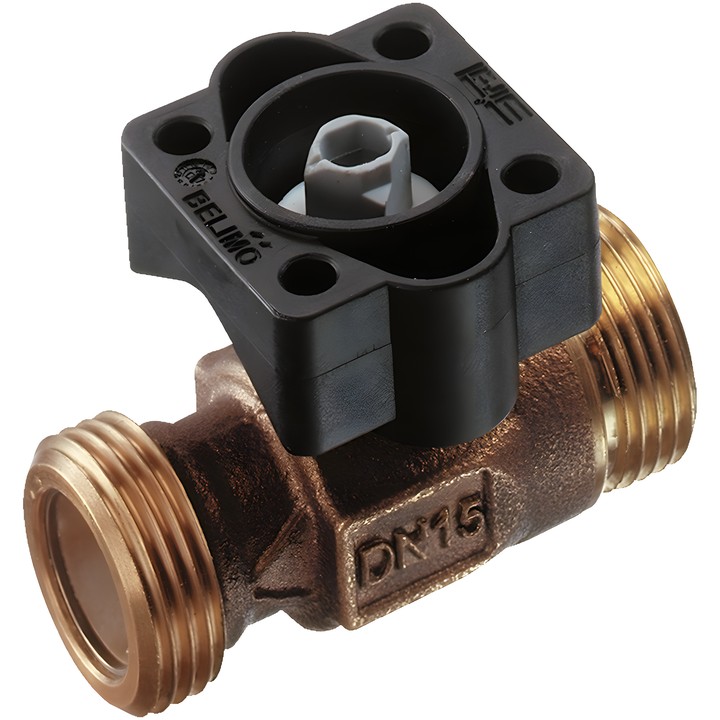

Belimo R410DK - 2-way on/off ball valve

Name: Belimo R410DK - 2-way on/off ball valve
Brand: Belimo
SKU: R410DK
Price: 694.13 PLN
Availability: BackOrder

Belimo

zł694.13

VAT included

zł564.33 tax excluded

Belimo R410DK is a 2-way on/off ball valve, DN 10, with G 3/4" male thread. Parameters: PN 40, ps 2700 kPa, Kvs 4 m³/h and medium temperature 2...130°C [36...266°F].

Designed for open and closed water systems. The body is made of low-lead gunmetal (CuSn4Zn6Pb3).

Delivery in approx. 14 days

Belimo R410DK – 2-way ball valve

On/off valve with male thread, designed for open and closed water systems. Operated by a rotary actuator: opening is counterclockwise and closing is clockwise.

Key technical data

DN 10; G 3/4" male thread according to ISO 228-1; PN 40.
Kvs 4 m³/h; ps 2700 kPa.
Maximum differential pressure Δpmax 800 kPa; closing pressure ∆ps 1400 kPa.
Medium: water, water with up to 50% vol. glycol; drinking water on request.
Medium temperature: 2...130°C [36...266°F]. The permissible temperature may depend on the actuator type.
Tightness: bubble-tight, leakage rate A (EN 12266-1).
Rotation angle: 90°.
Body: low-lead gunmetal (CuSn4Zn6Pb3); closing element and stem: stainless steel.

Installation instructions

Permissible installation position: from vertical to horizontal relative to the stem. Do not install with the stem pointing downwards. Observe the flow direction indicated by the arrow on the body.

Brand

Belimo
Reference

R410DK
EAN13

7630498108006

Kvs

4 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

2...130°C [36...266°F]
Fluid temperature, note

The permissible medium temperature may be limited depending on the actuator type. The limitations can be found in the relevant actuator data sheets.
Differential pressure

∆pmax 800 kPa
Closing pressure

1400 kPa
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

External thread
