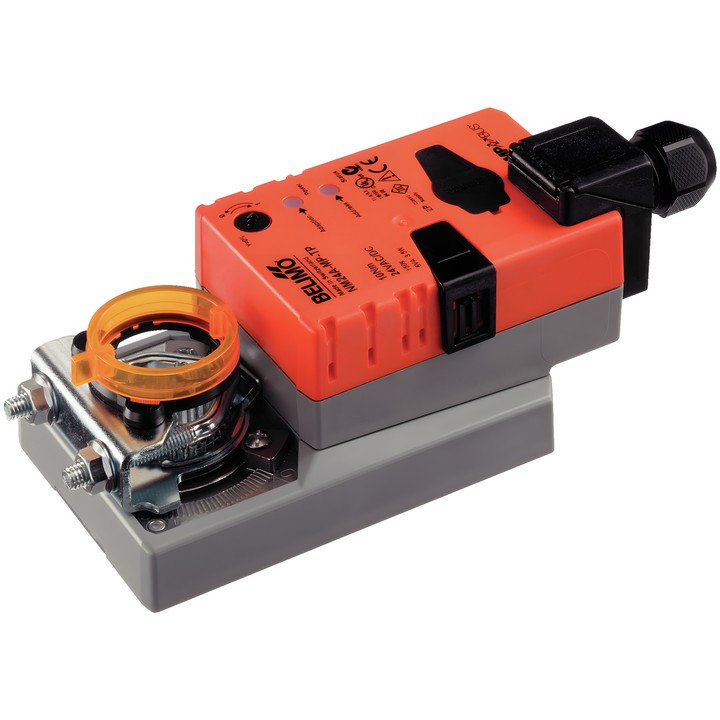

Communicating rotary actuator for dampers, with 10 Nm torque, AC/DC 24 V supply and MP-Bus communication. Modulating control 2...10 V and position feedback signal 2...10 V.

Running time is 150 s / 90°. The actuator has connection terminals, a universal shaft clamp 8...26.7 mm and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo NM24A-MP-TP – actuator for dampers

Communicating actuator for positioning dampers in technical building systems. It can operate with an analogue control signal Y or receive a digital control signal via MP-Bus. It allows a passive sensor, active sensor or switching contact to be connected and its signal to be transmitted via MP-Bus to the higher-level system.

Key features

  • Torque: 10 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Communication: MP-Bus; number of nodes: MP-Bus max. 8.
  • Motor running time: 150 s / 90°; adjustable running time: 43...173 s.
  • Angle of rotation: Max. 95°, with the option of limiting it on both sides using mechanical end stops.
  • Direction of movement selected by 0/1 switch; manual override by push-button, with locking option.
  • Mechanical connection: universal shaft clamp 8...26.7 mm; power and control connection: 4 mm² terminals (cable ø4...10 mm, 4-core).
  • Power consumption during operation: 3.5 W; in the rest position: 1.4 W; power for cable sizing: 6 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

Device parameters can be modified using Belimo Assistant 2. Adaptation of the setting range can be started manually.

  • Brand
    Belimo
  • Reference
    NM24A-MP-TP
  • EAN13
    7630498113130

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1.4 W
  • Rated power
    6 VA
  • Power supply control connection
    4 mm² terminals (ø4...10 mm cable, 4-core)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    43...173 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm
