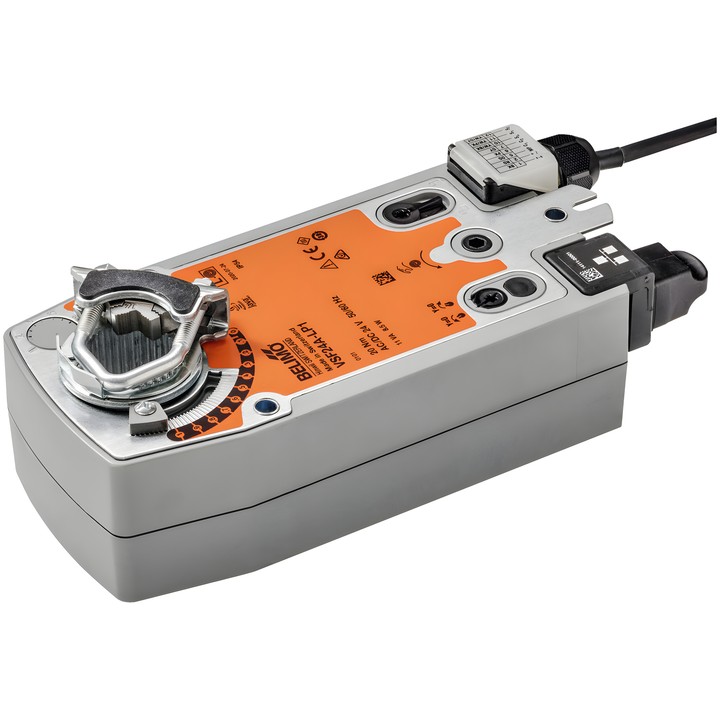

Belimo VSF24A-LP1 - rotary actuator for dampers with safety function

Belimo VSF24A-LP1 – actuator for dampers

Rotary actuator with a safety function, designed for air dampers with an area of up to approx. 4 m². It can be controlled via Cloud, BACnet/IP or Modbus TCP. In hybrid mode, the position is determined by an analogue control signal, while the communication interfaces allow data points to be read.

Key features and parameters

• Motor torque: 20 Nm; safety function torque: 20 Nm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Operating range Y: 2...10 V; variable operating range Y: 0.5...10 V.
• Motor running time: 150 s / 90°; adjustable motor running time: 70...220 s.
• Safety function running time: <20 s @ -20...50°C, <60 s @ -30°C.
• Angle of rotation: 95°; adjustable using mechanical stops.
• Power consumption during operation: 8.5 W; in standby position: 3.5 W; power rating for cable sizing: 11 VA.
• Communication: Cloud, BACnet/IP, Modbus TCP; Ethernet 10/100 Mbit/s, TCP/IP and integrated web server.
• Two sensors can be connected, and their signals can be converted for use by a higher-level system.
• Manual adjustment using a crank and locking switch; mechanical position indicator.
• Universal clamp for a 10...25.4 mm shaft; power and control connection: 1 m cable, 6x 0.5 mm²; Ethernet connection: RJ45 socket.
• Protection rating: IP40; ambient temperature: -30...50°C [-22...122°F].
