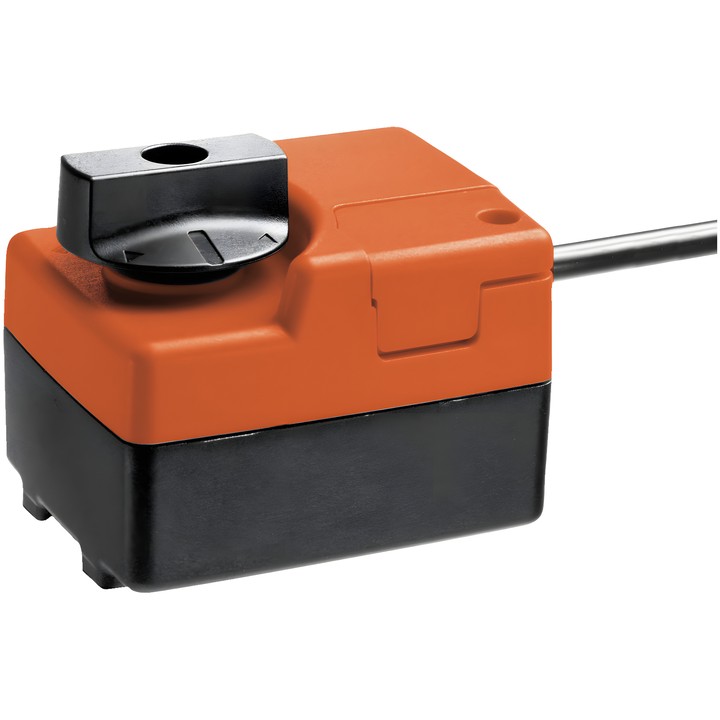

Belimo TR230-3 - rotary actuator for ball valves

Name: Belimo TR230-3 - rotary actuator for ball valves
Brand: Belimo
SKU: TR230-3
Price: 421.79 PLN
Availability: BackOrder

Belimo

zł421.79

VAT included

zł342.92 tax excluded

Belimo TR230-3 rotary actuator for ball valves, with a torque of 2 Nm. AC 230 V supply, 3-point control and a running time of 105 s / 90°.

Equipped with a mechanical position indicator and a 1 m connection cable, 3x 0.75 mm². IEC/EN IP40 degree of protection.

Delivery in approx. 14 days

Belimo TR230-3 rotary actuator

The TR230-3 is a rotary actuator designed for ball valves. It is mounted directly on the valve using one screw; the mounting position relative to the valve can be selected in 90° increments.

Key features and specifications

Motor torque: 2 Nm.
Rated voltage: AC 230 V; frequency: 50 Hz; voltage range: AC 207...253 V.
Control: 3-point; motor running time: 105 s / 90°.
Power consumption during operation: 1 W; power rating for cable sizing: 1 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Mechanical position indicator and manual override.
Automatic switch-off at the end positions; pulse duration ≥0.5 s.
IEC/EN protection class: II, reinforced insulation; IEC/EN degree of protection: IP40.
Ambient temperature: -7...50°C.

The device is intended for stationary heating, ventilation and air conditioning installations. Installation may only be carried out by qualified specialists.
