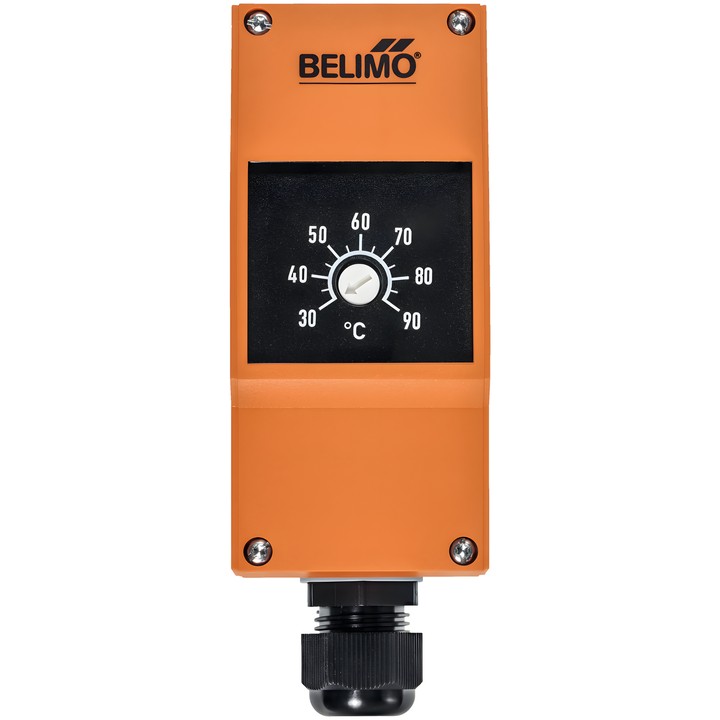

Belimo 01HT-101CA - TW temperature monitor

Belimo 01HT-101CA temperature monitor

The TW monitor switches the SPDT contact when the set temperature is reached. When the temperature falls, the contact returns to its initial position.

Key features

• Setting range: 30...90°C; switching differential: typ. 4.2 K.
• Capillary: 1 m; automatic reset.
• Contact rating: AC 230 V 16 (2.5) A at position 1-2; AC 230 V 6.3 (2.5) A at position 1-4; DC 230 V 0.25 A.
• Electrical connection: spring terminal max. 2.5 mm²; M20x1.5 mm cable gland for cable ø6...12 mm.
• IEC/EN degree of protection: IP54 with sealing elements fitted.
• Possible installation: surface-mounted on a pipe, in an immersion pocket, or wall-mounted with the probe in a flange or immersion pocket.
• Pipe fixing strap for ø15...100 mm included. Flange and immersion pockets are available as optional accessories.

If the capillary leaks, electrical circuit 1-2 remains permanently closed.
