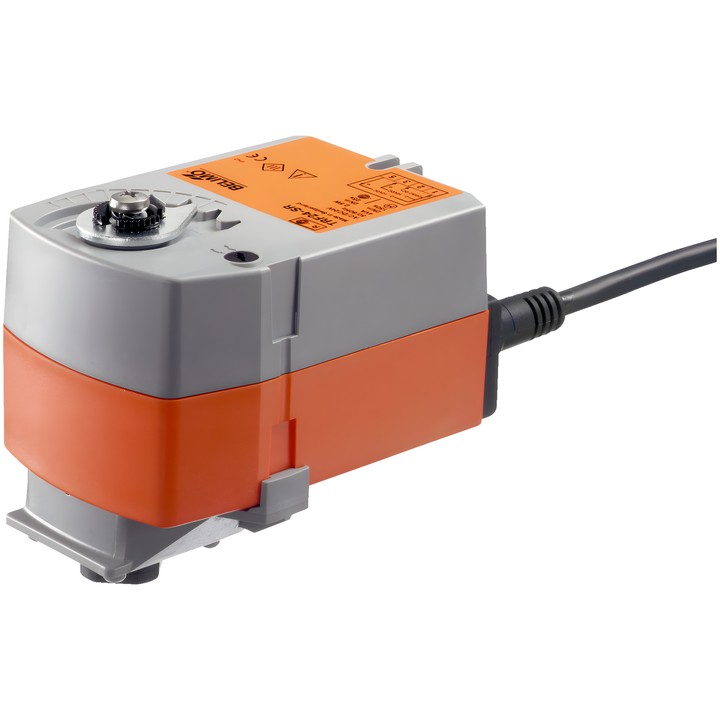

Belimo TRF230 - rotary actuator for ball valves

Belimo TRF230 – actuator for ball valves

Rotary actuator with a return spring. During operation, it moves the valve to the operating position and tensions the spring; when the power supply is interrupted, the spring moves the valve to the safety position. For the specified direction of action, this is the NC position: valve closed (A–AB = 0%). For valves with an L-port, the data sheet specifies A–AB = 100%.

Key features and specifications

• Motor and return spring torque: 2.5 Nm.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz; voltage range: AC 85...265 V.
• Control: Close/Open.
• Motor running time: 75 s / 90°; safety function running time: <75 s / 90°.
• Power consumption during operation: 2.5 W; in the idle position: 1.5 W; power for wire sizing: 5 VA.
• Power and control connection: cable 1 m, 2x 0.75 mm².
• Mechanical position indicator; IEC/EN degree of protection: IP42.
• Ambient temperature: -30...50°C; ambient humidity: max. 95% RH, non-condensing.

The actuator is mounted directly on the ball valve using one screw. The mounting position relative to the valve can be selected in 90° increments. The device has overload protection and stops automatically when it reaches the end stop.
