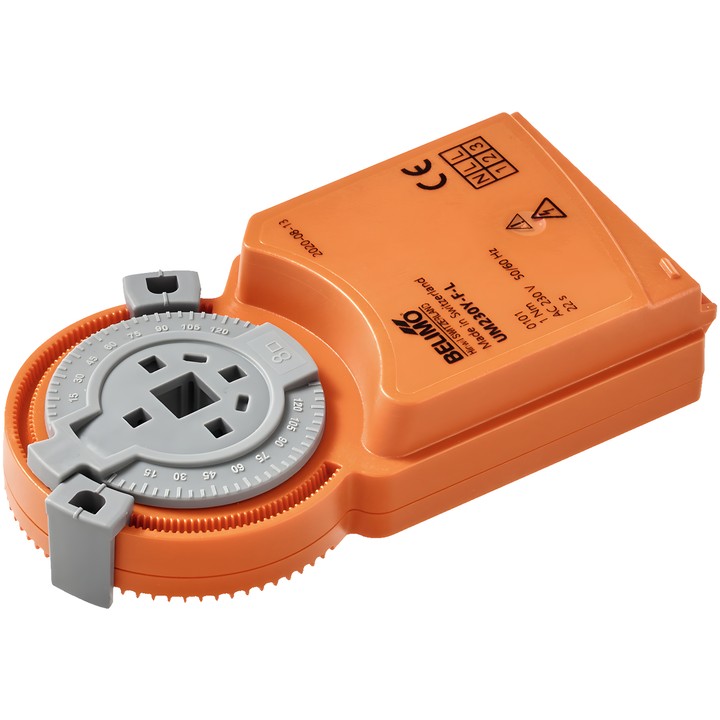

Belimo UM230Y-F-L.1 - damper actuator

Belimo UM230Y-F-L.1 - damper actuator

Belimo
zł452.64
VAT included
zł368.00 tax excluded

Belimo UM230Y-F-L.1 damper actuator with a torque of 1 Nm, AC 100...240 V supply and 3-point Open/Close control. The running time is 22 s / 90°, and the mechanical connection is an 8x8 mm form-fit connection.

Version with a connection plug, protection rating IP20. The cable-side mating connector is not included in the scope of delivery.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo UM230Y-F-L.1 damper actuator

Rotary actuator designed for factory installation in building-services equipment. The documentation specifies air dampers with an area of up to approx. 0.2 m².

Key features and specifications

  • Torque: 1 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: 3-point Open/Close.
  • Motor running time: 22 s / 90°; direction of movement: counter-clockwise rotation (ccw).
  • Rotation angle: 0...287.5°; adjustable mechanical end stop.
  • Mechanical connection: 8x8 mm form-fit connection.
  • Power consumption while running: 2 W; holding power: 1.5 W; power for wire sizing: 4.5 VA.
  • Electrical connection: Molex Mini-Fit Jr. 39303035 connection plug. The cable-side mating connector is not included in the scope of delivery.
  • Protection rating: IP20; ambient temperature: -30...50°C [-22...122°F].
  • Manual override: No.
  • Multipack: 100 pcs.

  • Brand
    Belimo
  • Reference
    UM230Y-F-L.1
  • EAN13
    7630498122552

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    1.5 W
  • Rated power
    4.5 VA
  • Power supply control connection
    Connection plug (cable-side mating connector not included)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP20
  • NEMA protection rating
    NEMA 1
  • Enclosure type
    UL Enclosure Type 1
  • Manual override
    No
  • Running time (motor)
    22 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Connection plug
    Molex Mini-Fit Jr. 39303035 connector
  • Torque
    1 Nm
  • Direction of movement - motor
    counterclockwise rotation (ccw)
  • Rotational angle
    0...287.5°
  • Mechanical connection
    Form-fit connection 8x8 mm

Techniczna karta katalogowa

Download (1.58MB)

Instrukcja montażu

Download (3.4MB)

EU Declaration of Conformity – UM230Y-F-L.1

Download (332.14KB)

Environmental Declaration – UM..

Download (71.03KB)
