Belimo BEN24 - fire damper actuator

Belimo BEN24 – fire damper actuator

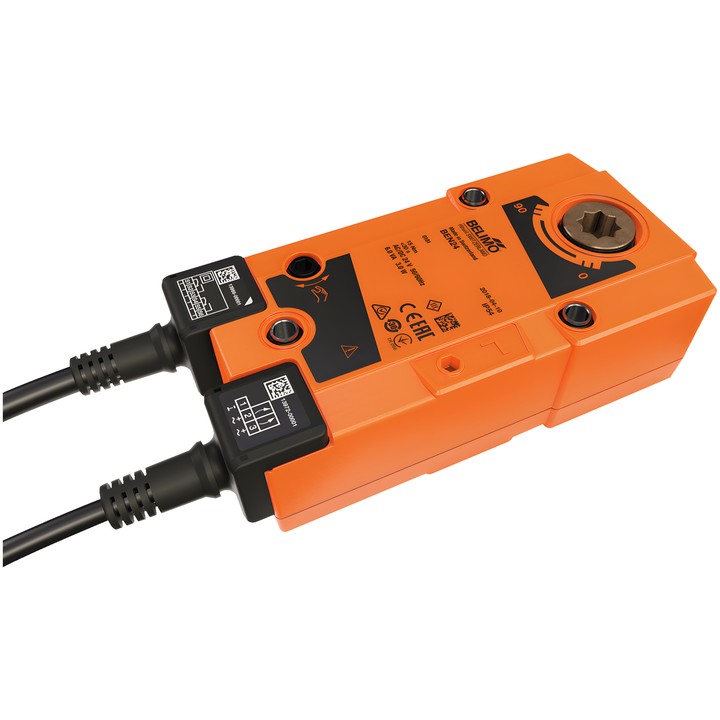

BEN24 is an actuator designed for fire dampers. It has two-wire Close/Open control and a mechanical position indicator. The motor direction of rotation can be selected by the mounting method.

Key technical data

• Motor torque: 15 Nm; running time: <30 s / 90°; rotation angle: max. 95°.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Power consumption during operation: 3 W; in the rest position: 0.1 W; sizing power: 6 VA.
• Auxiliary switches: 2x SPDT; switching points: 5° / 80°.
• Mechanical connection: 12x12 mm form-fit connection, through hollow shaft.
• Power and control connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free). Auxiliary switch connection: 1 m cable, 6x 0.75 mm², FRNC (halogen-free).
• Degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...55°C [-22...131°F].

Operation and equipment

The actuator allows manual adjustment by crank. The mechanical Safety Position Lock™ keeps the damper in a defined safety position in the event of a fire. The scope of delivery includes a hand crank, indicator and protective cover.

According to the documentation, the actuator is adapted to the damper and installed by the fire damper manufacturer; it is supplied directly to fire damper manufacturers.
