Belimo TF24-MFT - rotary actuator for dampers with fail-safe function

Belimo TF24-MFT - rotary actuator for dampers with fail-safe function

Belimo
zł841.70
VAT included
zł684.31 tax excluded

Belimo TF24-MFT is a rotary actuator for dampers with a fail-safe function, with a torque of 2.5 Nm and an AC/DC 24 V supply. It supports 2...10 V modulating control and MP-Bus communication.

The motor running time is 150 s / 90°, and the fail-safe function running time is <25 s / 90°. If the power supply is interrupted, the spring moves the damper to the safety position.

Delivery in approx. 14 days
Share

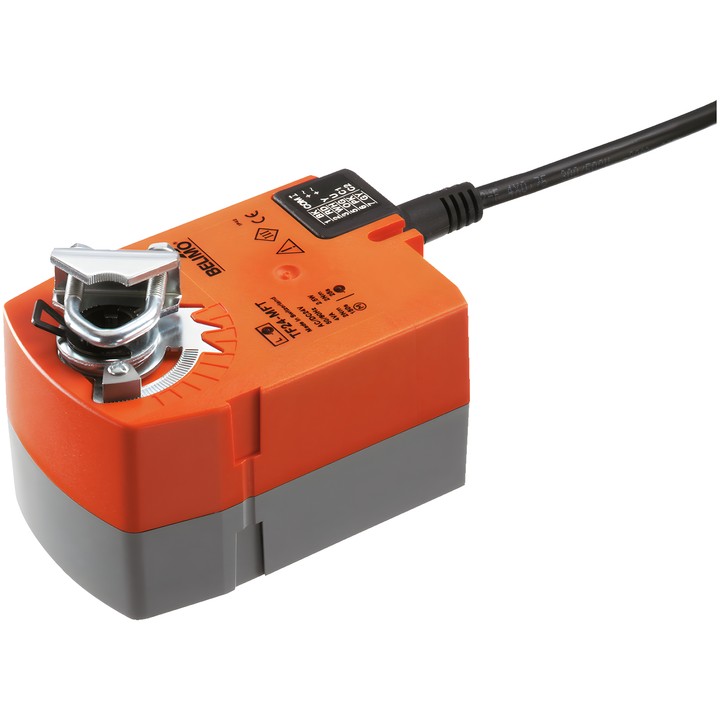

Belimo TF24-MFT actuator

A communicative rotary actuator with a fail-safe function, designed to position dampers in technical building systems. According to the technical data sheet, it is suitable for dampers with an area of up to approx. 0.5 m². During operation, the actuator moves the damper and tensions the return spring; when the voltage fails, the spring moves it to the safety position.

Key features and parameters

  • Motor and fail-safe function torque: 2.5 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control: Y operating range 2...10 V; U position feedback 2...10 V in analogue mode.
  • Communication via MP-Bus; max. 8 MP-Bus nodes. In bus mode, connection U functions as a communication interface and does not provide an analogue measurement voltage.
  • Connection of an active sensor or switching contact is possible, with the sensor signal transmitted via MP-Bus.
  • Motor running time: 150 s / 90°; fail-safe function running time: <25 s / 90°.
  • Rotation angle: max. 95°; mechanically adjustable using end stops.
  • Motor direction selected by L/R switch; fail-safe function direction selected by L/R mounting.
  • Universal shaft clamp for 6...12.7 mm; mechanical position indicator.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Power consumption during operation: 2.5 W; at rest: 1 W; for cable sizing: 4 VA.
  • Ingress protection: IP42; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    TF24-MFT
  • EAN13
    7630498115691

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1 W
  • Rated power
    4 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP42
  • Manual override
    No
  • Running time (motor)
    150 s / 90°
  • Running time (safety function)
    ＜25 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2.5 Nm
  • Direction of movement - motor
    Selectable using the L/R switch
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...12.7 mm
  • Direction of rotation (safety function)
    Selectable by mounting L/R

Techniczna karta katalogowa

Download (2.22MB)

Instrukcja montażu

Download (836.67KB)

EU Declaration of Conformity – TF24-MFT

Download (32.47KB)

Environmental Declaration – TF..

Download (72.15KB)
