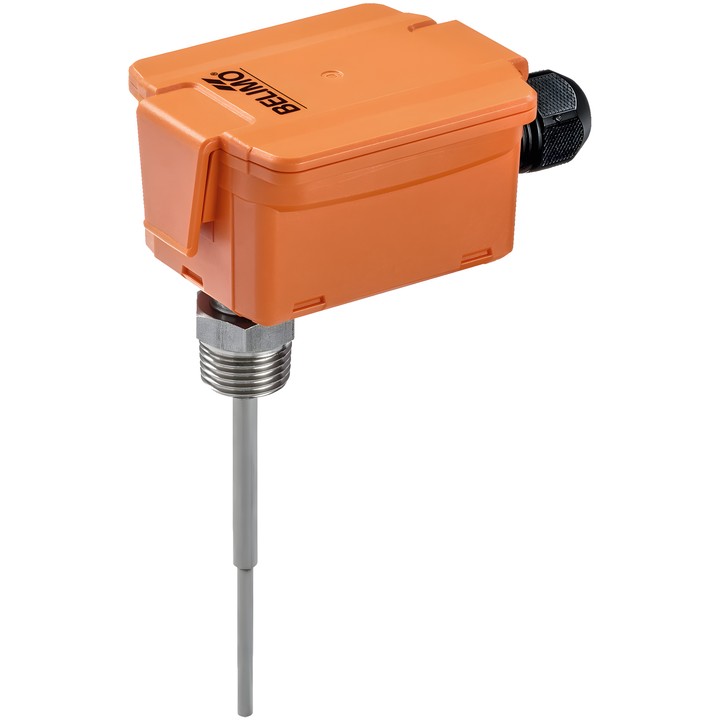

Belimo 01PT-1DL - immersion temperature sensor

Name: Belimo 01PT-1DL - immersion temperature sensor
Brand: Belimo
SKU: 01PT-1DL
Price: 250.90 PLN
Availability: BackOrder

Belimo

zł250.90

VAT included

zł203.98 tax excluded

Passive Belimo 01PT-1DL immersion temperature sensor with Ni1000TK5000 output signal. The stainless steel probe is 100 mm long and has a diameter of 6/4 mm; threaded connection R 1/2".

The sensor has a fast-response characteristic, IP65 / NEMA 4X protection rating and plug-in spring terminals for wires with a cross-section of max. 2.5 mm².

Delivery in approx. 14 days

Belimo 01PT-1DL – immersion temperature sensor

Passive sensor for measuring the temperature of liquid media, with a stainless steel probe and R 1/2" connection. The documentation also lists air and water as media.

Key features and parameters

Output signal: Ni1000TK5000.
Probe length: 100 mm; probe diameter: 6/4 mm.
Probe material: V4A stainless steel (1.4404, 1.4571); nominal pressure: PN10.
Measuring range for Ni..: -50...160°C [-60...320°F].
Accuracy for Ni..: ±0.4°C @ 0°C [±0.7°F @ 32°F]; measuring current for Ni1000TK5000: <0.3 mA @ 0°C [32°F].
Time constant τ (63%) in a water pipe: typically 2.5 s.
Electrical connection: plug-in terminal strip with spring terminals, max. 2.5 mm²; cable gland with strain relief ø6...8 mm.
Protection rating: IP65 / NEMA 4X.
