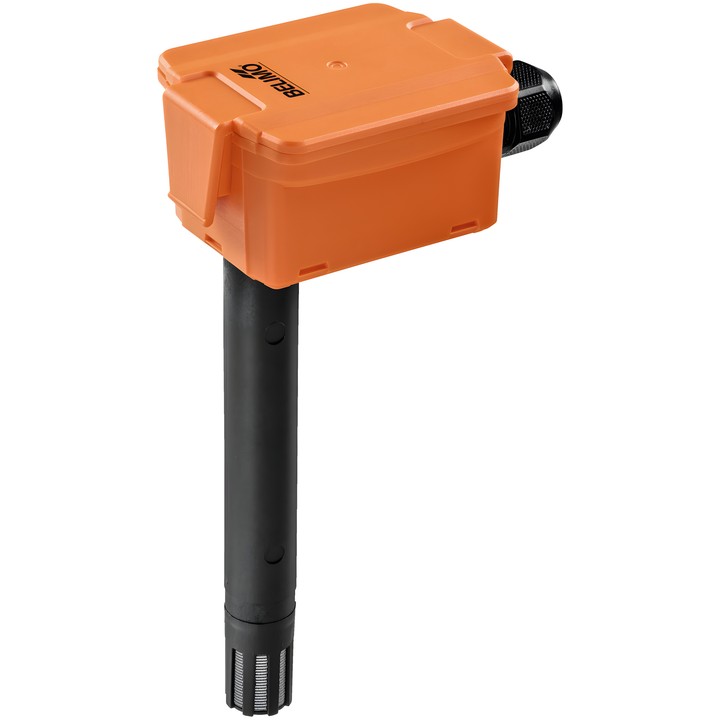

Belimo 22DTH-11Q - duct humidity and temperature sensor

Belimo 22DTH-11Q - duct humidity and temperature sensor

Belimo
zł1,109.77
VAT included
zł902.25 tax excluded

Active duct sensor for measuring air humidity and temperature. AC/DC 24 V supply, output signals 0...5 V or 0...10 V. Probe length is 270 mm.

Delivery in approx. 14 days
Share

Belimo 22DTH-11Q – duct humidity and temperature sensor

Active sensor designed to measure air humidity and temperature in a duct. The humidity output signal can be replaced with an enthalpy or dew point signal.

Key features

  • Nominal voltage: AC/DC 24 V.
  • Humidity and temperature output signals: 0...5 V, 0...10 V; 0...5/10 V output adjustable using a jumper.
  • Relative humidity measuring range: 0...100% RH.
  • Temperature: 4 selectable measuring ranges.
  • Probe length: 270 mm; probe diameter: 19.5 mm.
  • Housing protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable spring-clamp terminal block, max. 2.5 mm².
  • Includes A-22D-A35 mounting flange for 19.5 mm duct sensor.

  • Brand
    Belimo
  • Reference
    22DTH-11Q
  • EAN13
    7630498101182

  • Electrical connection
    Terminals
  • Measured values
    Temperature Humidity
  • Output signal
    0...5 V 0...10 V
  • Probe length
    270 mm
  • Humidity measuring range
    0...100% RH
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ

Techniczna karta katalogowa

Download (1.74MB)

Instrukcja montażu

Download (981.59KB)

Techniczna karta katalogowa – 22DTH-11..

Download (1.73MB)

EU Declaration of Conformity – 22DTH-11Q

Download (38.66KB)

Environmental Declaration – 22DTH..

Download (70.37KB)
