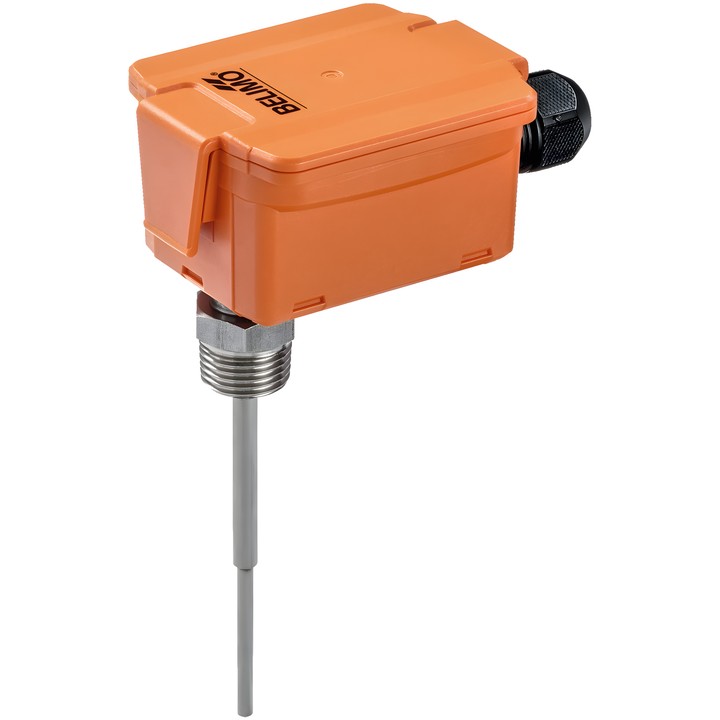

Belimo 01PT-1DP - immersion temperature sensor

Belimo 01PT-1DP - immersion temperature sensor

Belimo
zł385.61
VAT included
zł313.50 tax excluded

Passive Belimo 01PT-1DP immersion temperature sensor with Ni1000TK5000 output signal. The stainless steel probe is 200 mm long and has a diameter of 6/4 mm.

Designed to measure the temperature of liquid media. R 1/2" threaded connection, protection rating IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 01PT-1DP – immersion temperature sensor

Passive sensor for measuring the temperature of liquid media, with a stainless steel probe and R 1/2" connection. The documentation provides a brief response-time characteristic; the typical time constant τ (63%) in a water pipe is 2.5 s.

Key features

  • Output signal: Ni1000TK5000.
  • Probe length: 200 mm; probe diameter: 6/4 mm.
  • Probe material: V4A stainless steel (1.4404, 1.4571).
  • Measuring range for Ni..: -50...160°C [-60...320°F].
  • Accuracy for Ni..: ±0.4°C @ 0°C [±0.7°F @ 32°F].
  • Ni1000TK5000 measuring current: <0.3 mA @ 0°C [32°F].
  • Electrical connection: plug-in spring terminal block, max. 2.5 mm².
  • Protection rating: IP65 according to IEC/EN and NEMA 4X according to NEMA/UL.
  • Nominal pressure: PN10.

  • Brand
    Belimo
  • Reference
    01PT-1DP
  • EAN13
    7630498117671

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    Ni1000TK5000
  • Passive temperature sensor output
    Ni1000TK5000
  • Probe length
    200 mm

Techniczna karta katalogowa

Download (1.29MB)

Instrukcja montażu

Download (1.52MB)

Techniczna karta katalogowa – 01PT-1..

Download (1.29MB)

EU Declaration of Conformity – 01PT-1DP

Download (37.83KB)

Environmental Declaration – 01PT..

Download (70.16KB)
