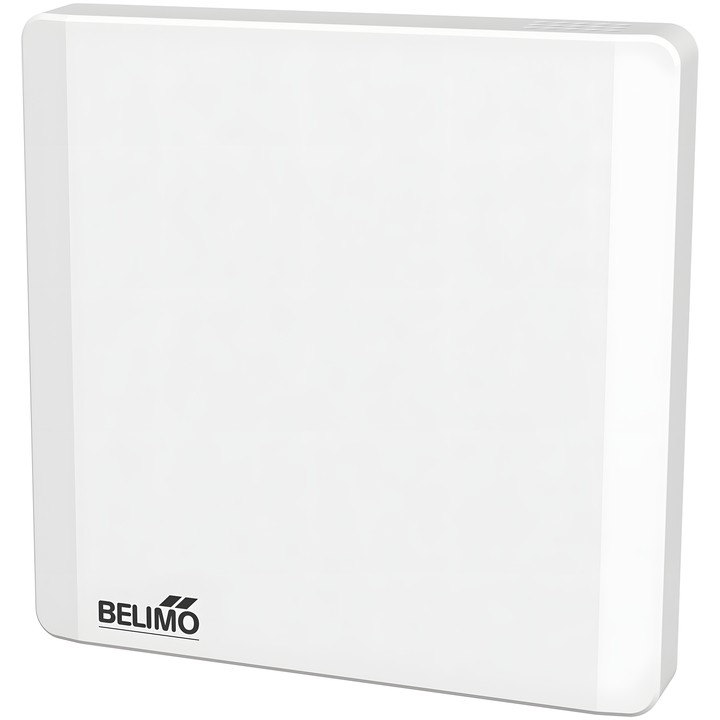

Belimo 01RT-1Q-0 - passive room temperature sensor

Belimo 01RT-1Q-0 – room temperature sensor

Passive sensor designed to measure the air temperature in a room. Model 01RT-1Q-0 has an NTC20k output signal.

Key features

• Measuring range: 0...50°C [32...122°F].
• Measuring current for NTC20k: <0.5 mA @ 25°C [77°F].
• Accuracy for NTC..: ±0.2°C @ 25°C [±0.35°F @ 77°F].
• Time constant τ (63%) in a room: typically 360 s.
• Electrical connection: spring terminal 0.5...1.5 mm².
• Cable openings at the rear and at the top and bottom of the housing.
• IEC/EN protection rating: IP30; IEC/EN protection class: III, Protective Extra-Low Voltage (PELV).
• Housing: PC, white, RAL 9003.
