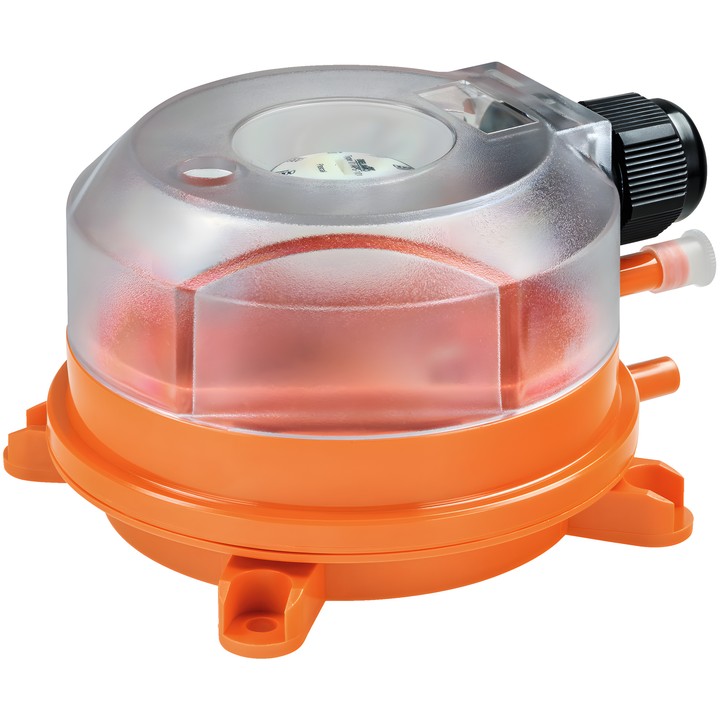

Belimo 01APS-101 - differential pressure switch

Name: Belimo 01APS-101 - differential pressure switch
Brand: Belimo
SKU: 01APS-101
Price: 109.15 PLN
Availability: BackOrder

Belimo

zł109.15

VAT included

zł88.74 tax excluded

Belimo 01APS-101 differential pressure switch for monitoring positive pressure, negative pressure and differential pressure of air and other non-flammable, non-aggressive gases. Measuring range: 200...1000 Pa. Equipped with an adjustable switching point and automatic reset.

Degree of protection IP54 / NEMA 13. Supplied with 2 m PVC tube, 2 plastic duct connections and screws.

Delivery in approx. 14 days

Belimo 01APS-101 – differential pressure switch

Pressure switch for monitoring positive pressure, negative pressure and differential pressure of air and other non-flammable, non-aggressive gases in stationary heating, ventilation and air-conditioning systems. It has an adjustable switching point and automatic reset.

Key technical data

Measuring range: 200...1000 Pa.
Repeatability: ±1%, min. ±5 Pa.
Switching differential: 100 Pa.
Burst pressure: 10 kPa.
Output signal: switch; max. contact load: 1,0 A / AC 250 V.
Electrical connection: terminals for wires 0.5...1.5 mm².
Degree of protection: IP54 / NEMA 13.
Ambient and medium temperature: -20...85°C [-4...185°F].
Supplied with: 2 m PVC tube, 2 plastic duct connections and screws.

Switching pressure specifications apply to vertical installation, recommended with the pressure ports pointing downwards. Installing the pressure switch upside down is not permitted.
