Belimo EXT-AC-L600 - volumetric airflow measuring probe

Name: Belimo EXT-AC-L600 - volumetric airflow measuring probe
Brand: Belimo
SKU: EXT-AC-L600
Price: 937.26 PLN
Availability: OutOfStock

Belimo

zł937.26

VAT included

zł762.00 tax excluded

A 600 mm probe for measuring volumetric airflow in rectangular ducts. Used with a 22ADP-.. differential pressure sensor; measurements are possible at air velocities from 2 to 25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

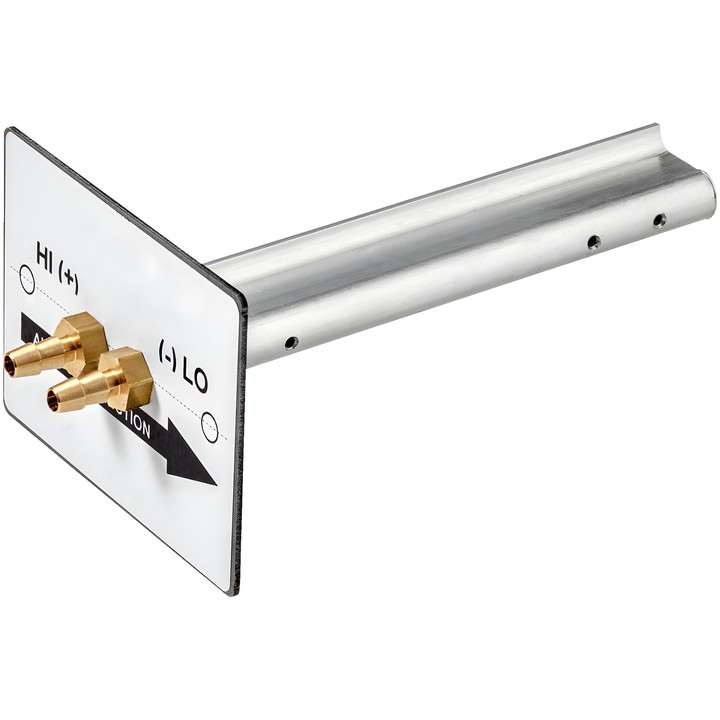

Belimo EXT-AC-L600 probe

The EXT-AC-L600 is a probe for measuring volumetric airflow in rectangular ventilation ducts. It is used for measurement in combination with a 22ADP-... differential pressure sensor.

Key features

Probe length: 600 mm.
Designed for rectangular ducts.
Air velocity range for measurement: 2 to 25 m/s.
Medium: air.
Medium temperature: 5...95°C [41...203°F].
Probe material: aluminium.
Weight: 0.30 kg.

Installation and commissioning notes

For rectangular ducts with a height greater than 300 mm, use several probes. During commissioning, the following settings are required for the 22ADP-.. differential pressure sensor: change the fan manufacturer to AirConcepts, set the probe k-factor according to the installation instructions, and adjust the lower and upper volumetric airflow values. Settings can be made using the Belimo Duct Sensor Assistant App or via bus communication.
