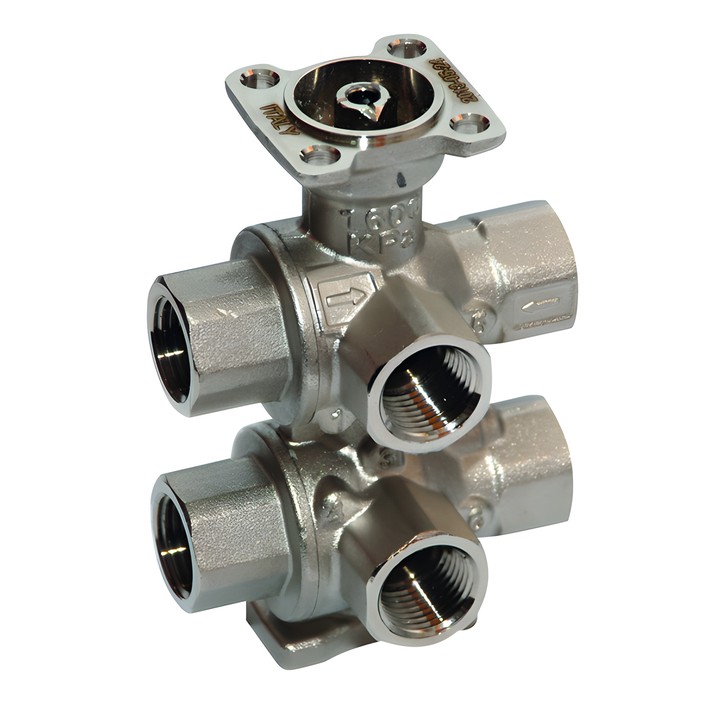

Belimo R3015-1P8-1P3-B2 - 6-way ball valve with control insert

Name: Belimo R3015-1P8-1P3-B2 - 6-way ball valve with control insert
Brand: Belimo
SKU: R3015-1P8-1P3-B2
Price: 592.16 PLN
Availability: BackOrder

Belimo

zł592.16

VAT included

zł481.43 tax excluded

6-way ball valve with control insert for switching or modulating water flow in heating and cooling elements in closed-loop systems. DN 15, Rp 1/2" female thread, PN 16; Kvs sequence I: 1.8 m³/h, sequence II: 1.3 m³/h.

Suitable for water or water with max. 50% vol. glycol; medium temperature 6...80°C [43...176°F]. Both sequences are operated by one 90° rotary actuator.

Delivery in approx. 14 days

Belimo R3015-1P8-1P3-B2 – 6-way valve

Ball valve with control insert designed for switching or modulating water flow in heating and cooling elements in closed-loop water systems. Both sequences can be operated by one 90° rotary actuator.

Key features and specifications

Design: 6-way, DN 15, Rp 1/2" female thread according to ISO 7-1.
PN 16; Kvs sequence I: 1.8 m³/h; Kvs sequence II: 1.3 m³/h.
Medium: water, water with max. 50% vol. glycol; medium temperature: 6...80°C [43...176°F].
Maximum differential pressure ∆pmax: 100 kPa; closing pressure ∆ps: 350 kPa; quiet operation: Δpv100 <50 kPa.
Linear flow characteristic; permissible leakage: bubble-tight, leakage rate class A (EN 12266-1).
90° rotation angle: sequence 1 0...30° (cooling recommended), dead zone 30...60°, sequence 2 60...90° (heating recommended).
Nickel-plated brass body, chrome-plated brass closing element, stainless steel control insert.

Permitted mounting position: from vertical to horizontal in relation to the spindle. Do not install with the axis pointing downwards.
