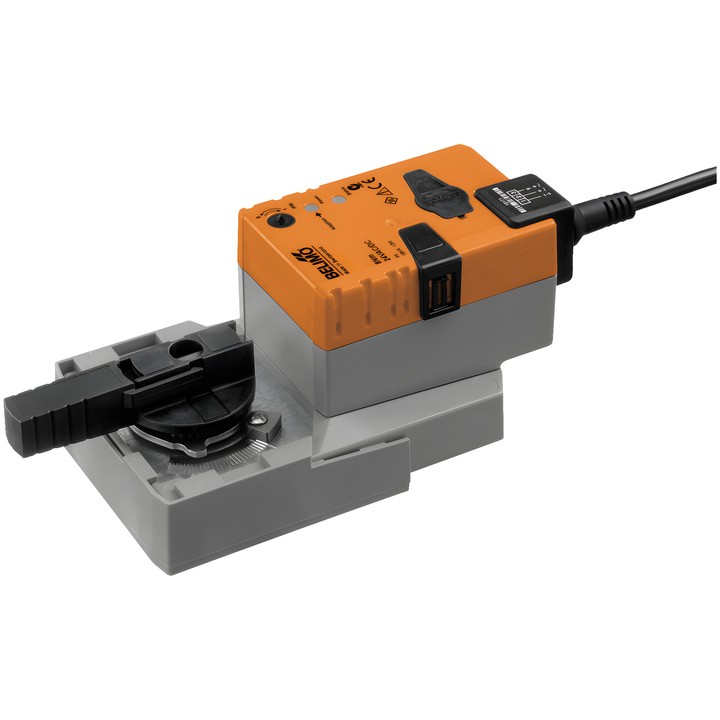

Belimo NRQ24A - rotary actuator for ball valves

Belimo NRQ24A - rotary actuator for ball valves

Belimo
zł1,193.81
VAT included
zł970.58 tax excluded

Belimo NRQ24A rotary actuator for ball valves, powered by AC/DC 24 V. The motor torque is 8 Nm, the control is Open/Close, and the running time is 9 s / 90°.

Delivery in approx. 14 days
Share

Belimo NRQ24A – actuator for ball valves

Electronic rotary actuator with mechanical angle-of-rotation stops and a position indicator. Manual adjustment is performed using a push button that can be locked.

Key technical data

  • Motor torque: 8 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control: Open/Close; motor running time: 9 s / 90°.
  • Power consumption during operation: 13 W; at rest: 2 W; for cable sizing: 23 VA.
  • Power and control connection: 1 m cable, 3x 0.75 mm².
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Mechanical, removable position indicator and adjustable angle of rotation with mechanical end stops.

  • Brand
    Belimo
  • Reference
    NRQ24A
  • EAN13
    7630498113680

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    13 W
  • Power consumption (holding)
    2 W
  • Rated power
    23 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Close/Open
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2

Techniczna karta katalogowa

Download (898.51KB)

Instrukcja montażu

Download (560.8KB)

EU Declaration of Conformity – NRQ24A

Download (32.69KB)

Environmental Declaration – NRQ..

Download (72.5KB)
