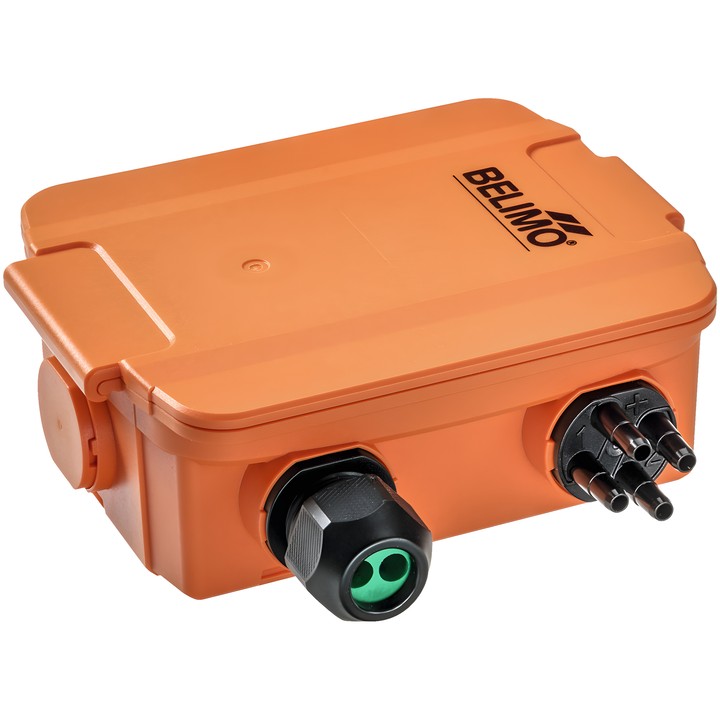

Belimo 22ADP-154H - dual air differential pressure sensor

Belimo 22ADP-154H - dual air differential pressure sensor

Belimo
zł1,462.16
VAT included
zł1,188.75 tax excluded

Dual air differential pressure sensor with two independent measuring systems and two additional inputs. Measuring range -100...2500 Pa, 8 selectable measuring ranges for each system, Modbus RTU communication and 0...5 V and 0...10 V outputs.

Power supply AC/DC 24 V. Enclosure protection rating IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 22ADP-154H – air differential pressure sensor

The 22ADP-154H has two independent measuring systems. It is used to monitor positive pressure, negative pressure or differential pressure of air and other non-flammable, non-aggressive gases. Documentation specifies use in stationary HVAC installations, including monitoring air filters and fan V-belts.

Key features

  • Pressure measuring range: -100...2500 Pa (-0.4...10 inch WC); 8 selectable measuring ranges for each system.
  • Measured values: differential pressure and volumetric flow; volumetric flow range set via Modbus.
  • Modbus RTU communication; two voltage outputs 0...5 V or 0...10 V, min. resistance 10 kΩ. The 0...5/10 V output signal is selected by switch.
  • Two additional inputs IN1 and IN2 for connecting a potential-free contact or NTC10k resistance sensor; input values can be read via Modbus.
  • Rated voltage AC/DC 24 V; rated voltage range AC 19...29 V / DC 15...35 V.
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Protection rating IP65 / NEMA 4X.
  • Electrical connection: plug-in terminal block with spring terminals, max. 2.5 mm².

Included: mounting plate, mounting kit, 4 plastic duct connectors and 2 lengths of PVC tubing, each 2 m.

  • Brand
    Belimo
  • Reference
    22ADP-154H
  • EAN13
    7630498100826

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    Modbus 0...5 V 0...10 V
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU

Techniczna karta katalogowa

Download (3.71MB)

Instrukcja montażu

Download (1.56MB)

Techniczna karta katalogowa – 22ADP-154H

Download (3.72MB)

EU Declaration of Conformity – 22ADP-154H

Download (38.68KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
