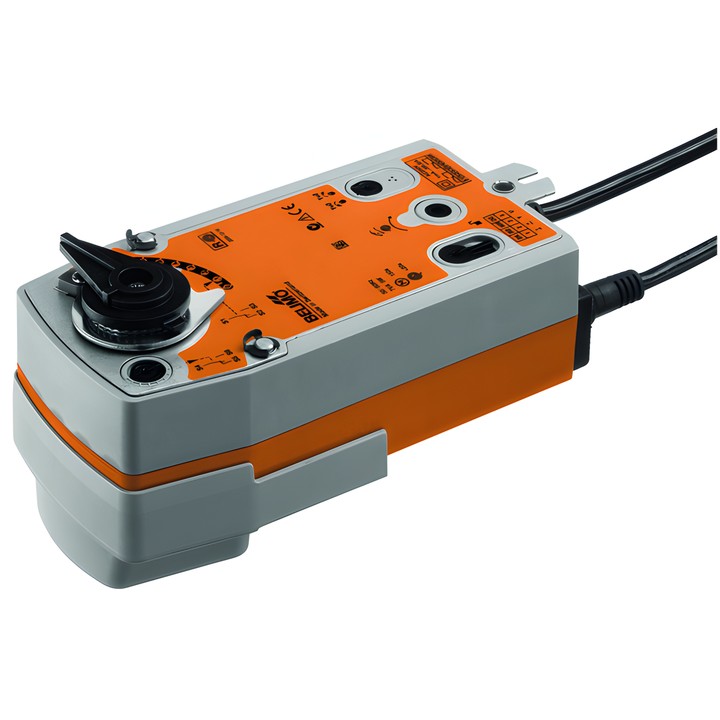

Belimo SRF24A-SZ-S2 - rotary actuator with spring return

Name: Belimo SRF24A-SZ-S2 - rotary actuator with spring return
Brand: Belimo
SKU: SRF24A-SZ-S2
Price: 1738.47 PLN
Availability: BackOrder

Belimo

zł1,738.47

VAT included

zł1,413.39 tax excluded

Analog rotary actuator with safety function for ball valves and butterfly valves. Motor torque and safety function torque are 20 Nm; power supply AC/DC 24 V, operating range Y 0.5...10 V.

In the event of a power failure, the spring return sets the valve to the closed position. The actuator has two built-in auxiliary switches 2x SPDT and an enclosure with IP54 protection rating.

Delivery in approx. 14 days

Belimo SRF24A-SZ-S2 – rotary actuator with safety function

Analog actuator designed for ball valves and butterfly valves. During operation, it sets the valve to the operating position and tensions the return spring. After a power interruption, the spring sets the valve to the safe position: valve closed (A–AB = 0%).

Key technical data

Torque – motor: 20 Nm; safety function: 20 Nm.
Rated voltage: AC/DC 24 V; operating range: AC 19.2...28.8 V / DC 21.6...28.8 V.
Operating range Y: 0.5...10 V; feedback signal U: 0.5...10 V.
Motor running time: 90 s / 90°; safety function running time: <20 s @ -20...50°C, <60 s @ -30°C.
Auxiliary switches: 2x SPDT, 1x 10% / 1x 11...100%.
Power consumption: 4.5 W during operation, 1.5 W at rest; rated power: 6.5 VA.
Power / control connection: Cable 1 m, 4x 0.75 mm²; auxiliary switch connection: Cable 1 m, 6x 0.75 mm².
Enclosure protection rating IEC/EN: IP54; NEMA/UL protection rating: NEMA 2.

Operation and installation

Direct installation on a ball valve is possible using one screw; the position relative to the valve can be changed in 90° increments. Manual operation is performed using a crank and locking switch. The rotation angle is adjusted using mechanical end stops.
