Belimo SR24P-5 - rotary actuator for valves

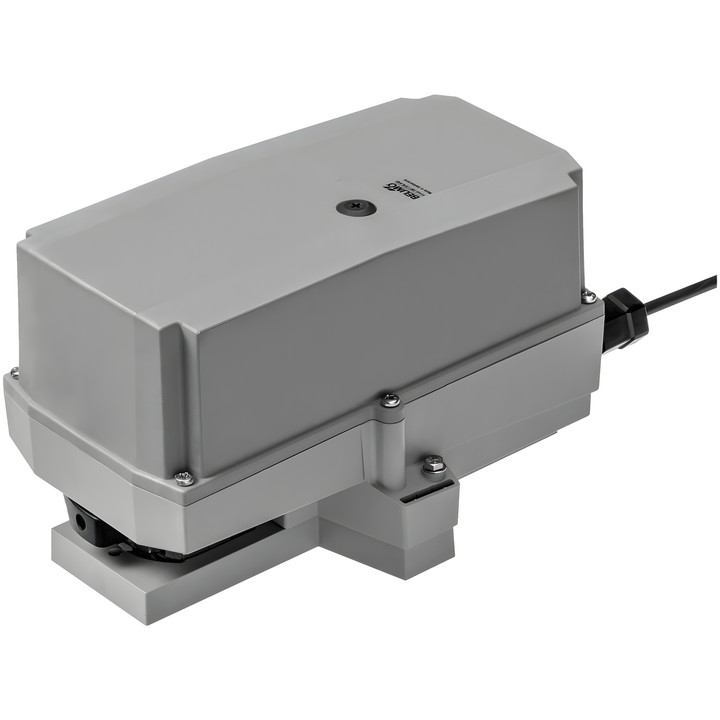

Belimo SR24P-5 – RobustLine rotary actuator

Actuator designed for rotary valves and dampers. It supports Open/Close and 3-point control. It features mechanical adjustment of the rotation angle and a position indicator.

Key specifications and features

• Torque: 20 Nm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Running time: 90 s / 90°.
• Power consumption during operation: 2.5 W; at rest: 0.2 W; wire sizing power: 5.5 VA.
• Power and control connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free).
• IEC/EN protection rating: IP66/67; NEMA/UL protection rating: NEMA 4X.
• IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
• Mounting flange: F05.
• Manual operation by push button with locking option; requires removal of the housing cover.
• Adjustable rotation angle with mechanical stops; standard setting: 0...90°.
• Mechanical, plug-in position indicator.
• ZPV-14 form-fit adapter included.

The actuator is protected against overload and stops automatically when the end position is reached.
