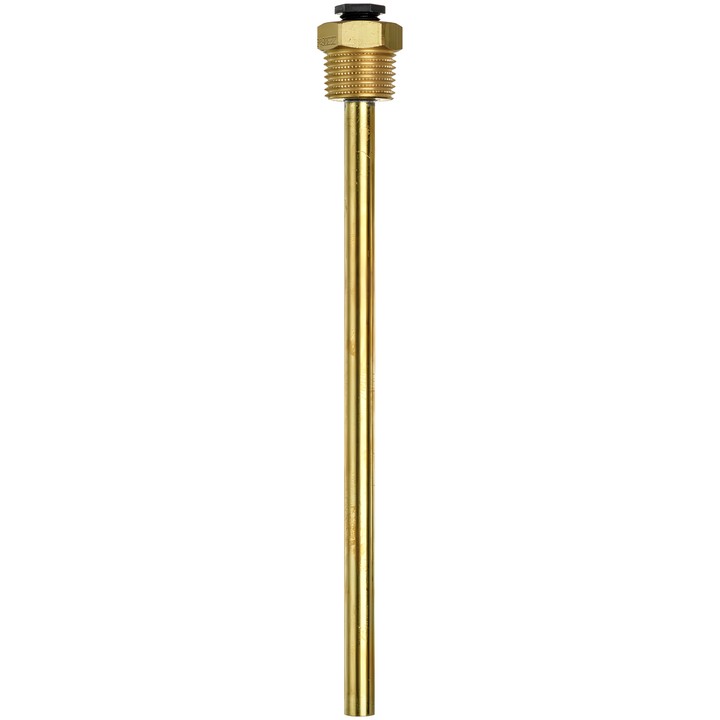

Belimo A-22P-A20 - brass immersion sleeve

Belimo A-22P-A20 - brass immersion sleeve

Belimo
zł59.66
VAT included
zł48.50 tax excluded

Brass immersion sleeve for installing temperature sensors. Sleeve length 100 mm, diameter 9 mm, external thread R 1/2" and SW22.

Delivery in approx. 14 days
Share

Belimo A-22P-A20 – immersion sleeve

Brass immersion sleeve with external thread R 1/2" and integrated compression fitting. Designed for immersion and cable sensors in the 01DT.., 22DT.., 01CT.., 22CT... series.

Key features

  • Sleeve length: 100 mm; diameter: 9 mm; SW22.
  • Maximum flow velocity: 12.2 m/s.
  • Media: water and water-glycol mixture.
  • PN 16; medium temperature: up to max. 130°C.
  • Probe material: brass. Turned sleeve component: CW614N (2.0401); tube: CW508L (2.0321); pressure screw: polyamide (PA66/GF25).
  • Weight: 0.068 kg.

  • Brand
    Belimo
  • Reference
    A-22P-A20
  • EAN13
    7630498101748

Techniczna karta katalogowa

Download (557.09KB)

Techniczna karta katalogowa – A-22P-A.. R MS

Download (544.32KB)
