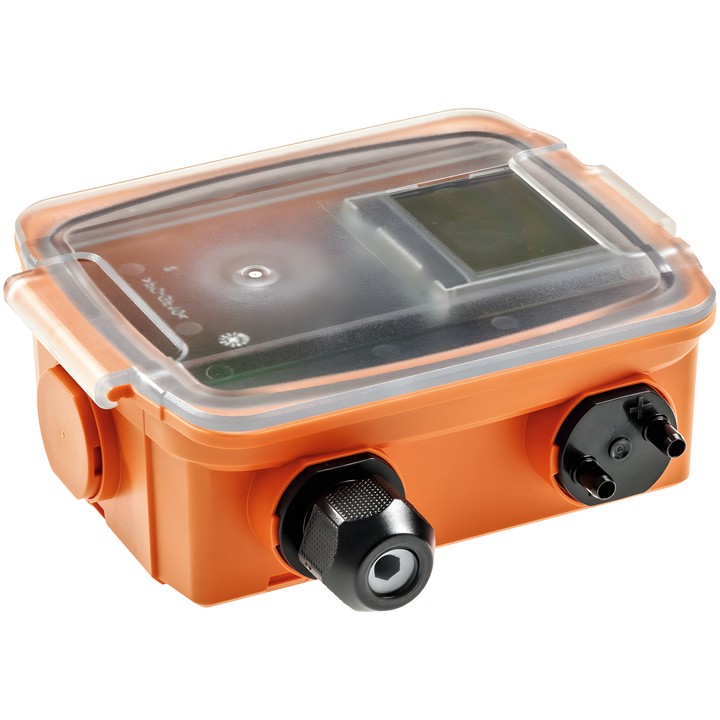

Belimo 22ADP-184L air differential pressure sensor with LCD. Measuring range -100...2500 Pa, 8 selectable measuring ranges and output signals 0...5 V, 0...10 V or 4...20 mA.

AC/DC 24 V supply, protection rating IP65 / NEMA 4X. Supplied with mounting plate, 2 plastic duct connectors and 2 m PVC tube.

Delivery in approx. 14 days
Share

Belimo 22ADP-184L – air differential pressure sensor

Transmitter for measuring differential pressure in air and other non-flammable, non-aggressive gases. The technical data sheet specifies use in stationary heating, ventilation and air conditioning installations, for example to monitor air filters and fans.

Key features

  • Measuring range: -100...2500 Pa (-0.4...10 inch WC); 8 selectable measuring ranges.
  • Output signals: 0...5 V, 0...10 V or 4...20 mA; 0...5/10 V output selectable by switch.
  • Backlit LCD; display units Pa and inch WC.
  • Nominal voltage: AC/DC 24 V.
  • Electrical connection: detachable spring terminal block, max. 2.5 mm².
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Supplied with: mounting plate, set of 2 plastic duct connectors with 2 m PVC tube, plugs and screws.

Output note: when the voltage output is switched from 0...10 V to 0...5 V, the current output changes from 4...20 mA to 4...12 mA.

  • Brand
    Belimo
  • Reference
    22ADP-184L
  • EAN13
    7630498100932

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V 4...20 mA
  • Pressure measuring range
    -100...2500 Pa | -0.4...10 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω
