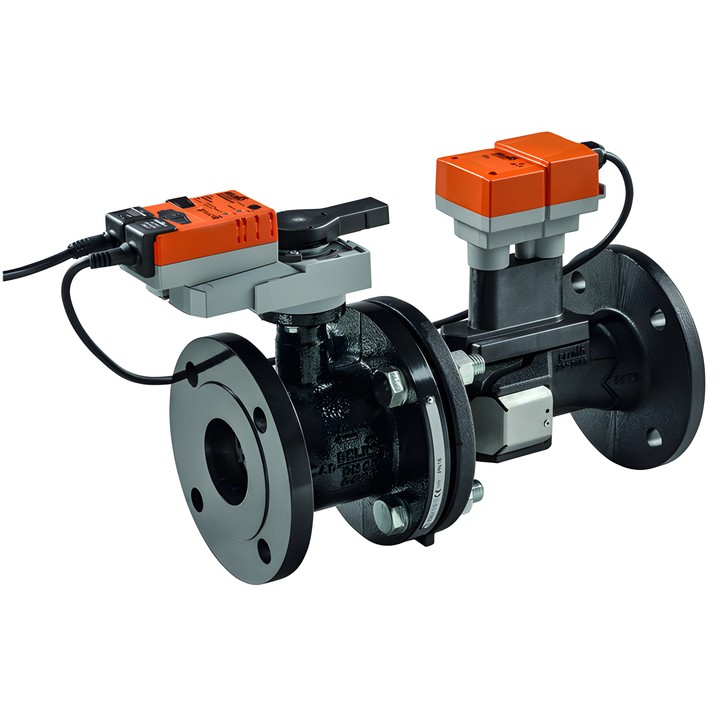

Belimo EP150F+MP - 2-way EPIV control ball valve

Name: Belimo EP150F+MP - 2-way EPIV control ball valve
Brand: Belimo
SKU: EP150F+MP
Price: 29997.01 PLN
Availability: BackOrder

Belimo

zł29,997.01

VAT included

zł24,387.81 tax excluded

Belimo EP150F+MP is a 2-way EPIV control ball valve with electronic flow control independent of pressure changes. The DN 150 model has a PN 16 flanged connection and V'nom 45 l/s.

The device is powered by AC/DC 24 V. It supports MP-Bus communication or analogue control with an operating range of Y 2...10 V.

Delivery in approx. 14 days

Belimo EP150F+MP – EPIV control valve

This 2-way ball valve with measuring tube and actuator is designed for closed-loop water systems. It controls water flow in air-handling unit circuits and heating systems using ultrasonic measurement.

Key features and specifications

Nominal diameter DN 150; flanged connection PN 16, according to EN 1092-2.
V'nom 45 l/s; V'max adjustable within 30...100% V'nom.
Power supply AC/DC 24 V; power consumption during operation 9 W.
MP-Bus communication or analogue control; operating range Y 2...10 V and feedback signal U 2...10 V.
Fluid: water, water with a maximum of 50% vol. glycol; fluid temperature -10...120°C [14...248°F].
Maximum differential pressure ∆pmax 340 kPa; closing pressure ∆ps 690 kPa.
Equal-percentage flow characteristic (VDI/VDE 2173), with the option to switch to linear.
Permissible leakage: bubble-tight, leakage class A (EN 12266-1).

During installation, observe the flow direction marked on the housing and provide a straight inlet section at least 5 x DN long upstream of the flow sensor.
