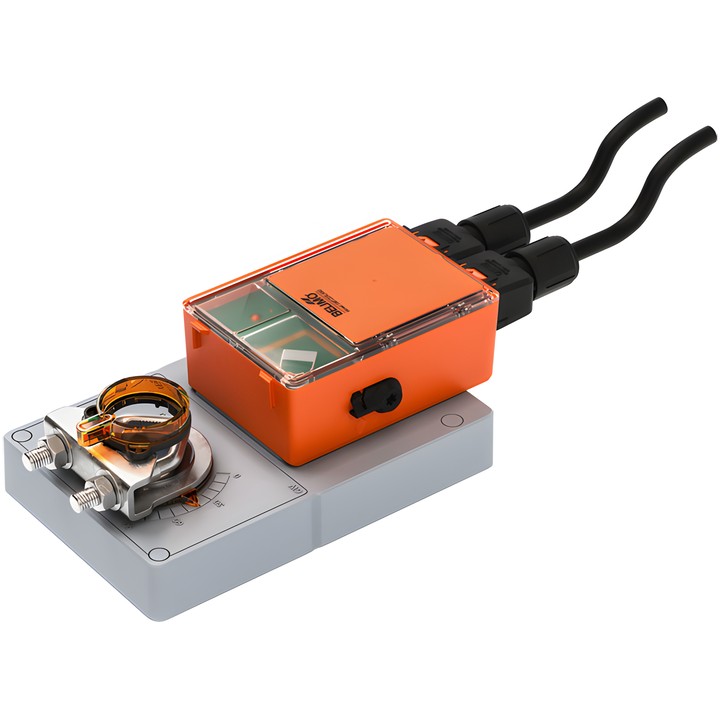

Belimo GM230S.2A - rotary actuator for dampers

Belimo GM230S.2A - rotary actuator for dampers

Belimo
zł1,558.56
VAT included
zł1,267.12 tax excluded

Rotary actuator for positioning dampers in building installations. Torque 40 Nm, rated voltage AC 100...240 V and 3-point Open/Close control.

Running time is 35 s / 90° and can be adjusted within a range of 35...150 s. The actuator has 2x SPST, manual override and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo GM230S.2A – actuator for dampers

Rotary actuator designed for positioning dampers in building installations. This model is an actuator without a safety function.

Key features and specifications

  • Torque – motor: 40 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Open/Close, 3-point.
  • Running time – motor: 35 s / 90°; adjustable running time: 35...150 s.
  • Auxiliary switches: 2x SPST (Single Pole, Single Throw); switching points S1/S2: 10% / S4/S5: 90%, configurable using the Belimo Assistant 2 app.
  • Power consumption during operation: 5.5 W; at rest: 0.6 W; rated power: 13 VA.
  • Rotation angle: max. 95°; motor direction of movement: clockwise (cw).
  • Manual override: side lever with locking mechanism.
  • Mechanical connection: reversible universal clamp mount 12...26.7 mm.
  • Power / control connection: FRNC (halogen-free) cable 1 m 3x 0.75 mm² [19 AWG]; auxiliary switch connection: FRNC (halogen-free) cable 1 m 4x 0.75 mm² [19 AWG].
  • Enclosure protection rating IEC/EN: IP54; ambient temperature: -30...55°C [-22...131°F].

Parameters can be modified wirelessly via the NFC interface using the Belimo Assistant 2 app. Operating status is indicated by a green LED.

  • Brand
    Belimo
  • Reference
    GM230S.2A

  • AC/DC voltage
    AC 100...240 V
  • Auxiliary switch connection
    FRNC cable (halogen-free) 1 m 4x 0.75 mm² [19 AWG]
  • Power consumption (running)
    5.5 W
  • Power consumption (holding)
    0.6 W
  • Rated power
    13 VA
  • Power supply control connection
    FRNC cable (halogen-free) 1 m 3x 0.75 mm² [19 AWG]
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • Manual override
    With side lever, lockable
  • Running time (motor)
    35 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...55°C [-22...131°F]
  • Auxiliary contacts
    2x SPST
  • Torque
    40 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 12...26.7 mm

Techniczna karta katalogowa – GM230S.2A

Download (2.47MB)

EU Declaration of Conformity – GM230S.2A

Download (56.35KB)

Technical data sheet – GM230S.2A

Download (2.46MB)
