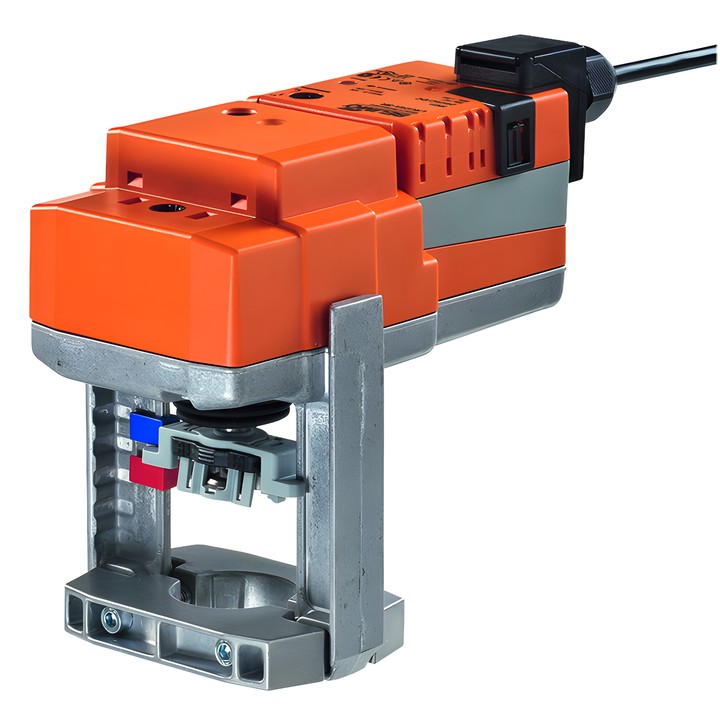

Belimo LVC24A-SZ-TPC - linear actuator for globe valves

Belimo LVC24A-SZ-TPC

Linear actuator with modulating control for 2- and 3-way globe valves. The device is designed for stationary heating, ventilation and air-conditioning systems.

Key features and specifications

• Thrust: 500 N; stroke: 15 mm; running time: 35 s / 15 mm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Operating range of control signal Y: 0.5...10 V; position feedback signal U: 0.5...10 V.
• Power consumption during operation: 2 W; at rest: 0.5 W; power for cable sizing: 3.5 VA.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm² (4 mm² terminal).
• Protection rating: IP54; ambient temperature: 0...50°C.
• Manual adjustment using a push-button with locking option, and a mechanical stroke indicator.
• Stroke range adaptation: manual, and automatic when power is first switched on.

The actuator is mounted directly on the valve using clamping jaws. It can be rotated 360° on the valve neck. The drive is protected against overload and stops automatically when it reaches the end position.
