Belimo 22DTM-15 - duct CO₂, humidity and temperature sensor

Belimo 22DTM-15 - duct CO₂, humidity and temperature sensor

Belimo
zł1,693.55
VAT included
zł1,376.87 tax excluded

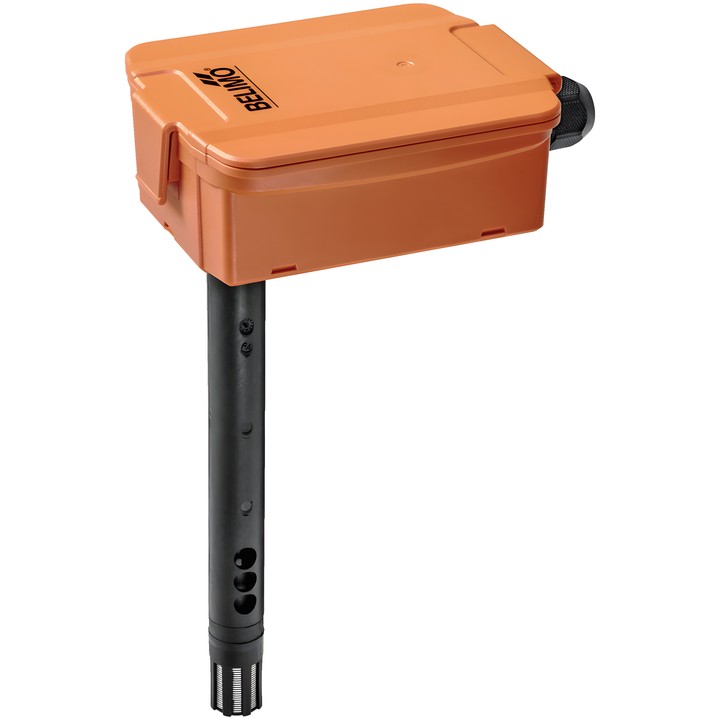

Belimo 22DTM-15 is a duct sensor for CO₂, air humidity and temperature, with Modbus RTU communication and 0...5 V, 0...10 V outputs. Power supply: AC/DC 24 V.

The probe is 180 mm long and 19.5 mm in diameter. The housing has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 22DTM-15 – duct sensor

A sensor for measuring CO₂, air humidity and temperature in a duct. It uses dual-channel CO₂ measurement technology and communicates via Modbus RTU. Measured values also include absolute humidity, dew point and enthalpy.

Key features and parameters

  • Power supply: AC/DC 24 V.
  • Communication: Modbus RTU.
  • Voltage outputs: 2 x 0...5 V, 0...10 V; minimum resistance 10 kΩ. The 0...5/10 V signal is adjustable using a jumper.
  • CO₂ measuring range: factory setting 0...2000 ppm; with A-22G-A05: 0...5000 ppm; via Modbus: 0...10000 ppm.
  • Temperature measuring range: adjustable via Modbus; factory setting 0...50°C [32...122°F].
  • Relative humidity measuring range: adjustable via Modbus; factory setting 0...100% RH.
  • Probe: length 180 mm, diameter 19.5 mm.
  • Housing protection rating: IP65 / NEMA 4X.
  • Electrical connection: plug-in terminal block with spring terminals, max. 2.5 mm².

  • Brand
    Belimo
  • Reference
    22DTM-15
  • EAN13
    7630498101236

  • Electrical connection
    Terminals
  • Measured values
    CO₂ Temperature Humidity
  • Output signal
    Modbus 0...5 V 0...10 V
  • Probe length
    180 mm
  • Humidity measuring range
    Adjustable via Modbus Factory setting: 0...100% RH
  • AC/DC voltage
    AC/DC 24 V
  • Temperature measuring range
    Adjustable via Modbus 0...50°C [32...122°F]
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU
  • CO₂ measuring range
    Factory setting: 0...2000 ppm With A-22G-A05: 0...5000 ppm Via Modbus bus: 0...10000 ppm
