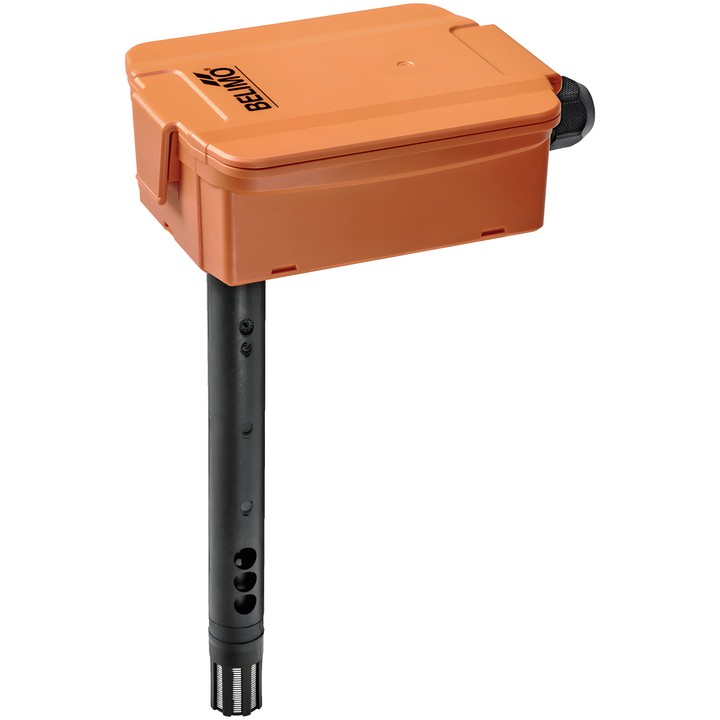

Belimo 22DTM-16 is a duct sensor for measuring CO₂, humidity and air temperature. It communicates via BACnet MS/TP and has two voltage outputs, 0...5 V or 0...10 V.

AC/DC 24 V supply, probe length 180 mm, probe diameter 19.5 mm. The enclosure has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 22DTM-16 – duct sensor

A sensor designed to measure CO₂, humidity and air temperature in a duct. It uses dual-channel CO₂ measurement technology and supports BACnet MS/TP communication.

Main features and specifications

  • Measured values: CO₂, relative humidity, absolute humidity, dew point, enthalpy and temperature.
  • CO₂ measuring range: factory setting 0...2000 ppm; with A-22G-A05: 0...5000 ppm.
  • Relative humidity measuring range: adjustable via BACnet; factory setting 0...100% RH.
  • Temperature measuring range: adjustable via BACnet; factory setting 0...50°C [32...122°F].
  • Communication: BACnet MS/TP.
  • Voltage outputs: 2 x 0...5 V, 0...10 V; minimum load resistance 10 kΩ. The 0...5/10 V signal is adjustable using a jumper.
  • Rated voltage: AC/DC 24 V.
  • Probe length: 180 mm; probe diameter: 19.5 mm.
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable terminal strip with spring terminals, max. 2.5 mm².

  • Brand
    Belimo
  • Reference
    22DTM-16
  • EAN13
    7630498117930

  • Electrical connection
    Terminals
  • Measured values
    CO₂ Temperature Humidity
  • Output signal
    BACnet 0...5 V 0...10 V
  • Probe length
    180 mm
  • Humidity measuring range
    Adjustable via BACnet Factory setting: 0...100% RH
  • AC/DC voltage
    AC/DC 24 V
  • Temperature measuring range
    Adjustable via BACnet 0...50°C [32...122°F]
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    BACnet MS/TP
  • CO₂ measuring range
    Factory setting: 0...2000 ppm With A-22G-A05: 0...5000 ppm

Techniczna karta katalogowa

Download (2.8MB)

Instrukcja montażu

Download (1.26MB)

Techniczna karta katalogowa – 22DTM-16

Download (2.8MB)

EU Declaration of Conformity – 22DTM-16

Download (39.86KB)

Environmental Declaration – 22DC../22DTC../22DTM../22DCV../22DCM../22DCK..

Download (70.56KB)
