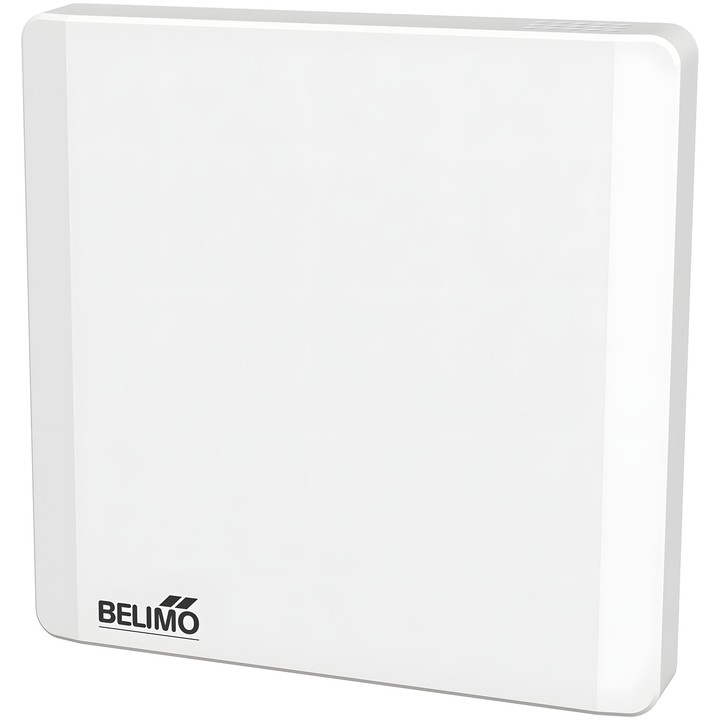

Belimo 01RT-1B-0 - passive room temperature sensor

Belimo 01RT-1B-0 - passive room temperature sensor

Belimo
zł80.32
VAT included
zł65.30 tax excluded

Belimo 01RT-1B-0 passive room temperature sensor with Pt1000 output signal. Measuring range: 0...50°C [32...122°F].

Polycarbonate (PC) housing, white, RAL 9003. IEC/EN IP30 protection rating.

Delivery in approx. 14 days
Share

Belimo 01RT-1B-0 – room temperature sensor

Passive sensor designed to measure room air temperature. Model 01RT-1B-0 has a Pt1000 output signal.

Key features

  • Measuring range: 0...50°C [32...122°F].
  • Measuring current for Pt1000: <0.3 mA @ 0°C [32°F].
  • Accuracy for Pt..: class B, ±0.3°C @ 0°C [±0.5°F @ 32°F].
  • Typical time constant τ (63%) in a room: 360 s.
  • Electrical connection: spring terminals 0.5...1.5 mm².
  • Cable entry openings at the rear and at the top and bottom of the housing.
  • IEC/EN IP30 protection rating; IEC/EN protection class III (PELV).
  • Housing: PC, white, RAL 9003.

The device is intended for fixed heating, ventilation and air-conditioning installations. Installation may only be carried out by authorised specialists.

  • Brand
    Belimo
  • Reference
    01RT-1B-0
  • EAN13
    7630498100598

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    Pt1000
  • Passive temperature sensor output
    Pt1000

Techniczna karta katalogowa

Download (1.39MB)

Instrukcja montażu

Download (757.06KB)

Techniczna karta katalogowa – 01RT-1..

Download (1.39MB)

EU Declaration of Conformity – 01RT-1B-0

Download (37.54KB)

Environmental Declaration – 01RT../22RT..

Download (71.81KB)
