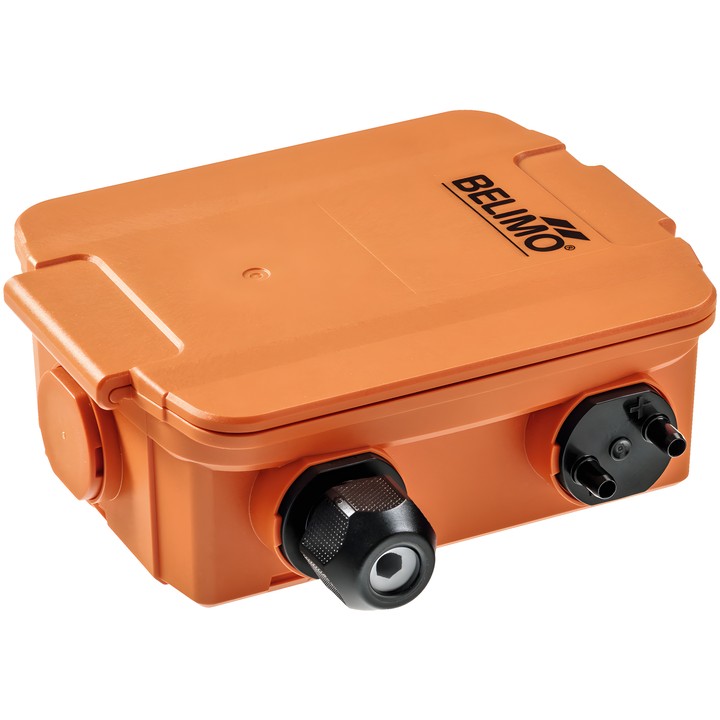

Belimo 22ADP-18QA air differential pressure sensor with Auto-Zero function and 8 selectable measuring ranges. Measuring range: -150...250 Pa; output signals: 0...5 V, 0...10 V or 4...20 mA.

AC/DC 24 V supply, IP65 / NEMA 4X protection rating. Supplied with: 2 plastic duct connections, 2 m PVC tube and mounting hardware.

Delivery in approx. 14 days
Share

Belimo 22ADP-18QA – air differential pressure sensor

The sensor monitors the differential pressure of air and other non-flammable, non-aggressive gases. In HVAC installations, it can be used to monitor air filters, fan belts and differential pressure systems.

Key features

  • Measuring ranges: -150...250 Pa and -0.6...1 inch WC; 8 selectable measuring ranges.
  • Auto-Zero automatic zeroing function.
  • Output signals: 0...5 V, 0...10 V or 4...20 mA. The 0...5/10 V output is selected by a switch.
  • Rated voltage: AC/DC 24 V.
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Protection rating: IP65 / NEMA 4X.
  • Electrical connection: detachable spring terminal block, max. 2.5 mm².
  • Supplied with: mounting plate, mounting kit, 2 m PVC tube and 2 plastic duct connections.

Output note: when the voltage output is switched from 0...10 V to 0...5 V, the current output range changes from 4...20 mA to 4...12 mA.

  • Brand
    Belimo
  • Reference
    22ADP-18QA
  • EAN13
    7630498100970

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V 4...20 mA
  • Pressure measuring range
    -150...250 Pa | -0.6...1 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω

Techniczna karta katalogowa

Download (3.56MB)

Instrukcja montażu

Download (993.72KB)

Techniczna karta katalogowa – 22ADP-18Q..

Download (3.56MB)

EU Declaration of Conformity – 22ADP-18QA

Download (39.82KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
