Belimo 22PEM-1UC - DN 15 thermal energy meter

Belimo 22PEM-1UC - DN 15 thermal energy meter

Belimo
zł3,202.08
VAT included
zł2,603.32 tax excluded

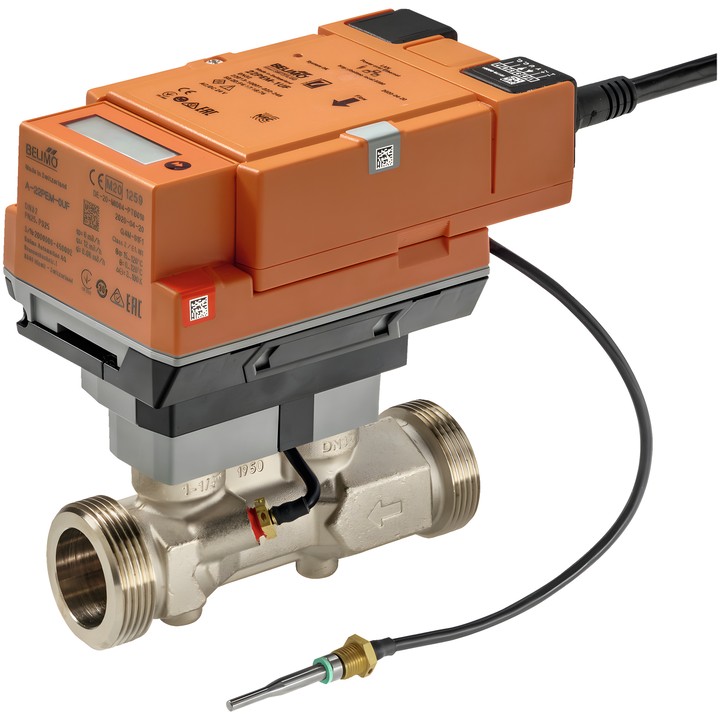

Belimo 22PEM-1UC thermal energy meter for measuring energy in a heating or cooling circuit. It uses ultrasonic flow measurement and temperature sensors; as a heat meter, it has MID approval and meets the requirements of EN 1434.

DN 15, qp 1.5 m³/h, PN 25, AC/DC 24 V or PoE power supply. Supports BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU and MP-Bus, plus a voltage output of 1 x 0...10 V, 0.5...10 V, 2...10 V.

Delivery in approx. 14 days
Share

Belimo 22PEM-1UC thermal energy meter

The device determines thermal energy based on volumetric flow and the temperature difference. It can operate as a heat, cooling or heating and cooling meter; the appropriate mode is set during commissioning. MID approval applies to use as a heat meter. When used as a cooling meter, local regulations must be observed.

Main features and specifications

  • Ultrasonic flow measurement; measured values: flow and temperature.
  • DN 15; G 3/4" male threaded connection; PN 25; medium: water.
  • Nominal flow qp 1.5 m³/h, maximum qs 3 m³/h, minimum qi 0.015 m³/h.
  • AC/DC 24 V power supply; PoE (Power over Ethernet) power supply is also possible.
  • Communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus.
  • Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V.
  • LCD; configuration via NFC with Belimo Assistant 2 or via the integrated web server.
  • Insulation cover for DN 15...25 included; the data sheet specifies an exception for deliveries to the Asia-Pacific region.

The meter consists of a logic module and a sensor module. One temperature sensor is integrated into the flow sensor, and the other is an external sensor. The device can be installed on the supply or return pipe.

  • Brand
    Belimo
  • Reference
    22PEM-1UC
  • EAN13
    7630498118005

  • Electrical connection
    Cable
  • Measured values
    Flow Temperature
  • Output signal
    BACnet Modbus MP-Bus 0...10 V
  • AC/DC voltage
    AC/DC 24 V
  • Display type
    LCD
  • Output voltage range [Range]
    1 x 0...10 V, 0.5...10 V, 2...10 V
  • Communication
    BACnet/IP BACnet MS/TP Modbus TCP Modbus RTU MP-Bus
  • Flow qp
    1.5
  • Medium
    Water
  • Valve size
    15 mm | 1/2 inch

Techniczna karta katalogowa

Download (4.77MB)

Instrukcja montażu

Download (1.48MB)

Techniczna karta katalogowa – 22PEM-1U..

Download (4.97MB)

EU Declaration of Conformity – 22PEM-1UC

Download (138.99KB)

Environmental Declaration – 22PEM..

Download (71.66KB)
