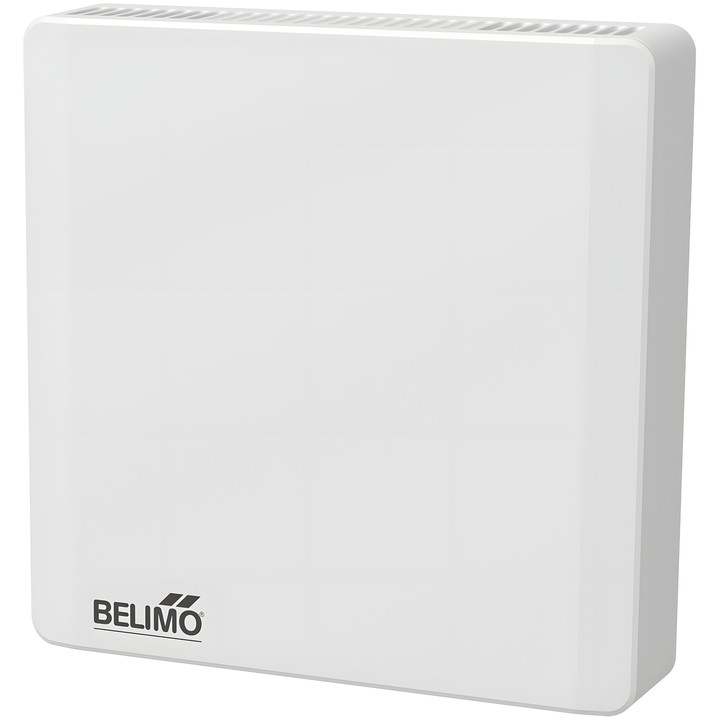

Belimo 22RT-19-1 - active room temperature sensor

Name: Belimo 22RT-19-1 - active room temperature sensor
Brand: Belimo
SKU: 22RT-19-1
Price: 471.09 PLN
Availability: OutOfStock

Belimo

zł471.09

VAT included

zł383.00 tax excluded

Belimo 22RT-19-1 is an active room temperature sensor with MP-Bus communication and a configurable voltage output of 0...5 V, 0...10 V or 2...10 V. Supply: AC/DC 24 V.

The temperature measuring range is 0...50°C [32...122°F]. Configuration is via NFC using Belimo Assistant 2.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo 22RT-19-1 – room temperature sensor

Active sensor for measuring room temperature. Model 22RT-19-1 supports MP-Bus communication and one voltage output. The device can be configured via NFC using Belimo Assistant 2.

Key features and parameters

Measured value: temperature; measuring range 0...50°C [32...122°F].
Rated voltage: AC/DC 24 V.
Communication: MP-Bus.
Voltage output: 1 x 0...5 V, 0...10 V, 2...10 V; minimum resistance 5 kΩ. Factory setting: 0...10 V; range selected via NFC.
IEC/EN degree of protection: IP30.
Housing: PC, white, RAL 9003.

Brand

Belimo
Reference

22RT-19-1
EAN13

7630498101328

Electrical connection

Terminals
Measured values

Temperature
Output signal

0...5 V 0...10 V 2...10 V MP-Bus
AC/DC voltage

AC/DC 24 V
Temperature measuring range

0...50°C [32...122°F]
Active sensor output note

Output 0...5 V, 0...10 V (factory setting), 2...10 V selectable via NFC
Output voltage range [Range]

1 x 0...5 V, 0...10 V, 2...10 V, min. resistance 5 kΩ
Communication

MP-Bus
