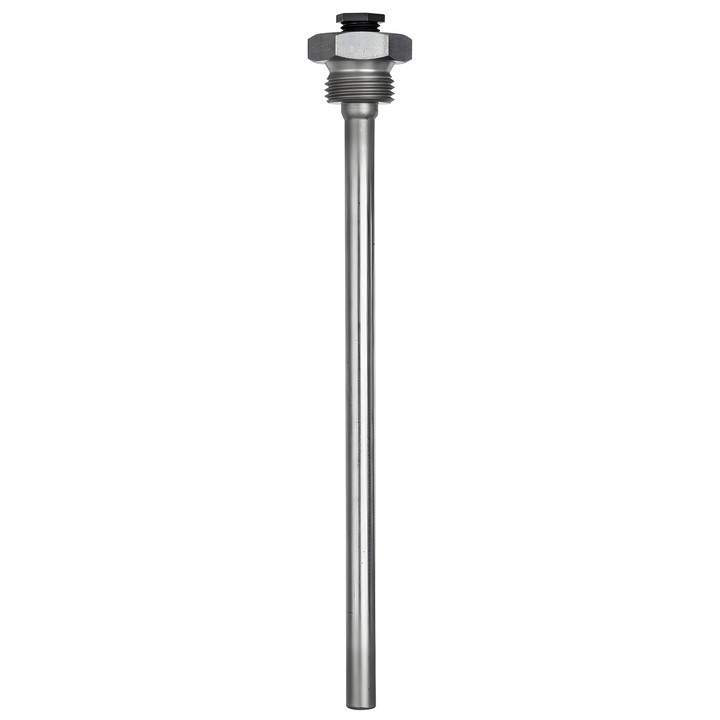

Belimo A-22P-A14 - immersion sleeve for temperature sensor

Belimo A-22P-A14 - immersion sleeve for temperature sensor

Belimo
zł136.17
VAT included
zł110.71 tax excluded

Stainless steel immersion sleeve for immersion and cable temperature sensors 01DT.., 22DT.., 01CT.. and 22CT... Sleeve length is 300 mm, diameter 9 mm; G 1/2" male thread and integrated compression fitting.

Delivery in approx. 14 days
Share

Belimo A-22P-A14 – immersion sleeve

Stainless steel sleeve designed for installing immersion and cable temperature sensors from series 01DT.., 22DT.., 01CT.. and 22CT...

Key features and specifications

  • Sleeve length: 300 mm; diameter: 9 mm.
  • G 1/2" male thread; integrated compression fitting; SW27.
  • Maximum flow velocity: 2.4 m/s.
  • Medium: water or a water-glycol mixture; PN 40.
  • Medium temperature: up to max. 200°C.
  • Sleeve materials: machined part V4A (1.4404), tube V4A (1.4571); clamping screw: Polyamide (PA66/GF25).

  • Brand
    Belimo
  • Reference
    A-22P-A14
  • EAN13
    7630498101717

Techniczna karta katalogowa

Download (467.24KB)

Techniczna karta katalogowa – A-22P-A.. G VA

Download (470.67KB)
