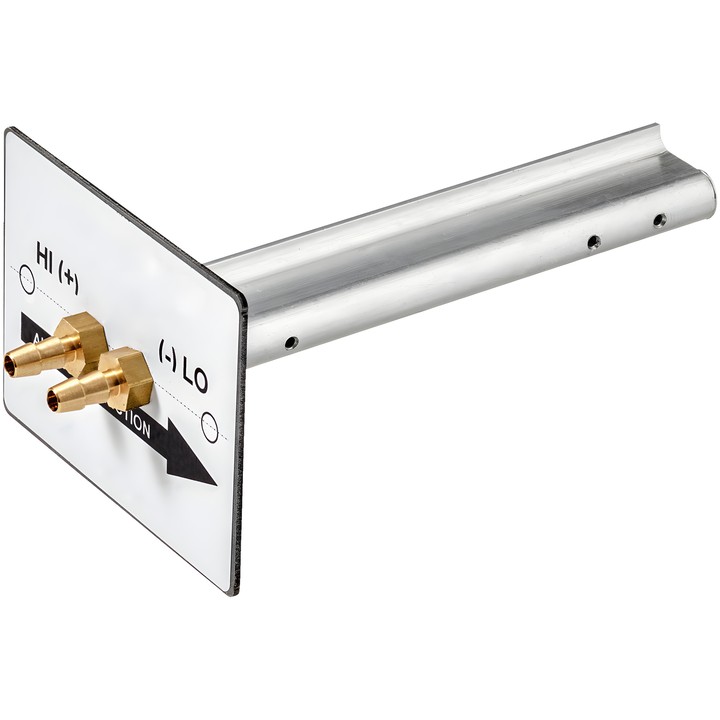

Belimo EXT-AC-R400 - probe for measuring air volume flow

Name: Belimo EXT-AC-R400 - probe for measuring air volume flow
Brand: Belimo
SKU: EXT-AC-R400
Price: 699.87 PLN
Availability: OutOfStock

Belimo

zł699.87

VAT included

zł569.00 tax excluded

Probe for measuring air volume flow in a circular duct. Probe length: 400 mm. Compatible with the 22ADP-... differential pressure sensor.

Measurement is possible at air velocities from 2 to 25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-R400

Probe for measuring air volume flow, designed for circular ducts. Measurement is performed in conjunction with the 22ADP-... differential pressure sensor.

Key features

Probe length: 400 mm.
Air velocity range for measurement: from 2 to 25 m/s.
Medium: air.
Medium temperature: 5...95°C [41...203°F].
Probe material: aluminium.
Dimension B: 25 mm.

During commissioning, accurate air volume flow measurement requires settings to be configured on the 22ADP-... differential pressure sensor. The documentation specifies changing the fan manufacturer to AirConcepts, changing the k-factor, and adjusting the lower and upper air volume flow values. The probe's k-factor is given in the installation instructions.
